3504/CC/VH/X/XX/1/1/XXX/G/D4/LO/R4, Eurotherm 3504 PID Temperature Controller, 96 x 96mm, 6 Output Analogue, Changeover Relay, Logic, Relay, 100 →, Регулятор температуры

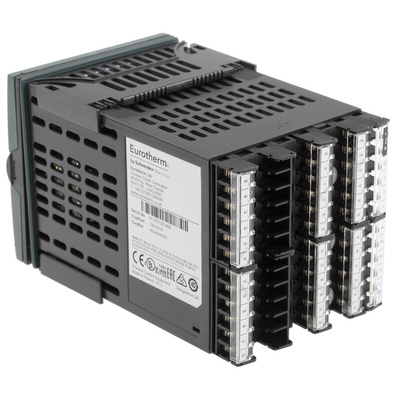

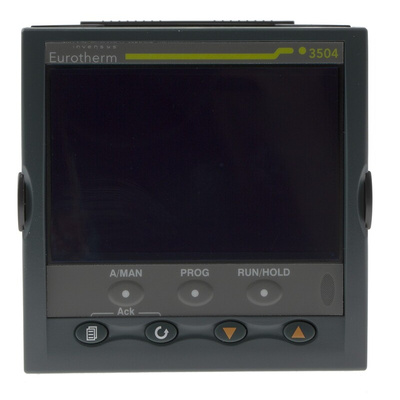

Eurotherm Temperature Controller

The Eurotherm 3504 temperature controller has a supply voltage ranging from 85VAC to 264VAC. This standard controller has a width of 96mm and a height of 96mm and depth of 90mm device. It has 6 analog outputs. This controller is a host of other process variables along with other advanced options making it the most adaptable product in its class. A simple 'quick start' process is used to configure all the basic functions essential to controlling your process. This includes input sensor type, measurement range, control options and alarms. More advanced features are configured using a PC based graphical configuration tool enabling users to pick function blocks from a library and connect them using soft wiring.

Features and Benefits

1 program
2 PID loops
4-line message centre provides custom
5-digit display provides a clear and unambiguous indication of the process value
Carbon potential
Custom user interface
Maths/logic/timers
OEM security
Precision PV input
Recipes
Vertical and horizontal bar graphs provide at a glance visual indication of the process

Applications

Autoclaves
Environmental chambers
Heat treatment
Melt pressure
Process applications
Reactors and fermenters
Semi-conductors

Certifications

IP65 rated

3500 Process Controller - Manual

3500 Process Controller - Data Sheet
