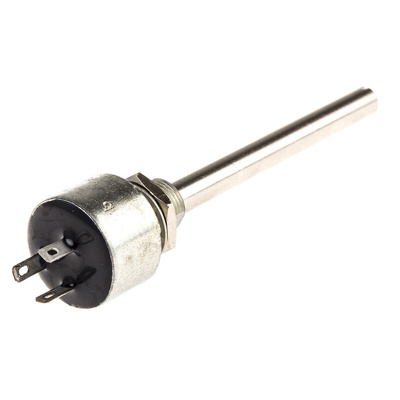

Vishay 10kΩ Rotary Potentiometer 1-Gang Panel Mount, PE30L0AP103KABG004, Потенциометр

Vishay IP67 rated Military / Professional Grade Potentiometer - PE30 Series

Vishay brings you a range of brilliant potentiometers. These potentiometers are of the highest build quality and make great use in military and professional situations. They feature a fully sealed body and an IP67 rating making them great use in every scenario. These potentiometers feature a cermet element with through-hole mounting.

Features and Benefits:

•19.7mm body
•High power ratings at 70°C
•Excellent thermal stability
•Robust construction with a fully sealed body. IP67 Rated
•Terminations for 0.11in. Receptacles 0.5mm thick
•Contact resistance variation 3% or 3Ω, whatever is greater.
•Insulation resistance of 105mΩ at 500Vdc
•Environmental class 55/125/56

Note

Shaft dimension measurement includes bush

Supplied with

mounting nut and lock washer
