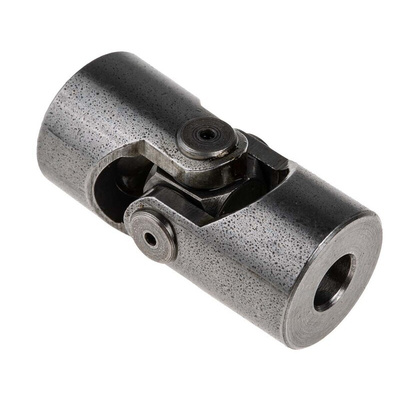

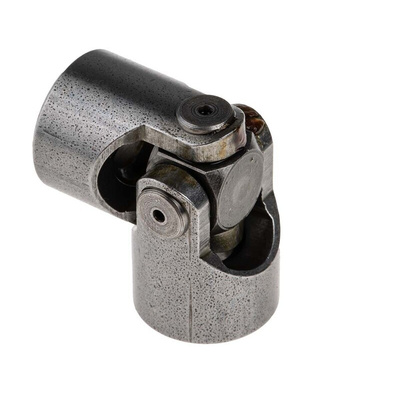

RS PRO Universal Joint, Single, Plain, Bore 6mm, 34mm Length, Шарнирная муфта

RS PRO Universal Joint, Single, Plain, Bore 6 mm, 34 mm Length

RS PRO's universal joints are made for connecting rotating machinery, such as drive and line shafts or conveyors, to a prime mover. They're used to connect two rods or shafts with axes that have an inclined angle to one another, as you might find in trucks and cars.

It has a 6 mm bore and like most bored hub types has a square, round or hex-shaped hole. To ensure smooth operation when using this joint in vehicles or with machinery, you can use a protective gaiter with the plain bearing. These couplings can tolerate applications with a 1000 rpm maximum speed and 3° to 45° operating angle.

As part of our trusted RS PRO range, this component has been stringently tested. The most common uses for these steel joints include conveyor belts, centrifugal pumps and automotive propeller shafts.

Features and Benefits

• Plain single-joint universal type
• Made from steel
• Bored hub type
• Maximum speed of 1000 rpm
• Hub outer diameter of 16 mm
• Bore size of 6 mm
• Overall length of 34 mm
• Peak torque of 600 Nm
• Maximum working angle of 45°

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
