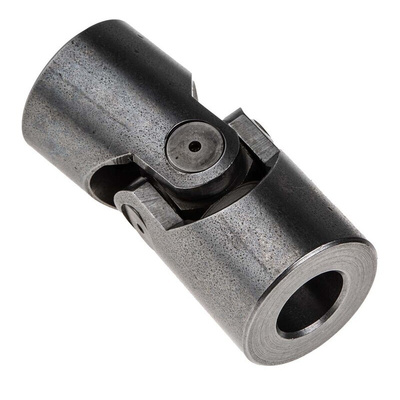

RS PRO Universal Joint, Single, Plain, Bore 12mm, 56mm Length, Шарнирная муфта

RS PRO Universal Joint, Single, Plain, Bore 12 mm, 56 mm Length

These universal joints from the tried and tested RS PRO range are designed for connecting rotating machinery such as conveyors to a prime mover. You can also use them in a variety of vehicles if you need to connect two rods or shafts where the axes are positioned at an angle to each other.

These steel joints are plain bearing universal couplings well-suited to applications with an operating angle between 3° and 45° and a maximum speed of 1000 rpm. They're bored hub type joints with a bore size of 12 mm.

It's recommended that you use a protective gaiter and lubrication with these plain bearings, as this will ensure smooth operation and help prolong their lifetime. Some examples of suitable applications for universal joints include belt conveyors, vehicle prop shafts and centrifugal pumps.

Features and Benefits

• Universal joint
• Plain single-joint type
• Made from steel
• Bored hub type
• Maximum speed of 1000 rpm
• Hub outer diameter of 25 mm
• Bore size of 12 mm
• Overall length of 56 mm
• Peak torque of 600 Nm
• Maximum working angle of 45°
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
