RS PRO Universal Joint, Single, Plain, Bore 20mm, 82mm Length, Шарнирная муфта

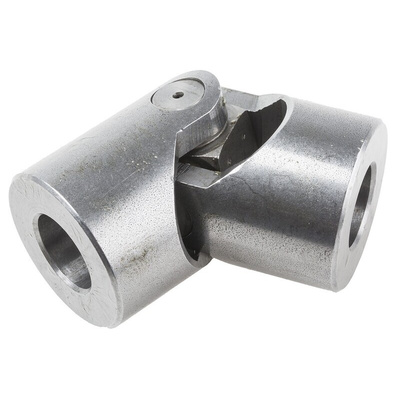

RS PRO Universal Joint, Single, Plain, Bore 20 mm, 82 mm Length

Use this universal joint in automotive applications to connect two shafts with axes positioned at an angle to each other. It's made from solid steel that is not only corrosion-resistant but also chemical-resistant, so you're at no risk of decay due to rust and chemical abrasion.
This joint has a high peak torque of 600 Nm, which means that it can be used in applications with a maximum speed of 1000 revolutions per minute (rpm) at a working angle of 45 degrees. It's a bored hub-type joint, meaning that it has a hole or bore of 20 mm for easy connection of the cross and hub.
As part of our trusted RS PRO range, this component has been tested by engineers to ensure professional quality. Universal joints such as this one are commonly used in the construction of automotive propeller shafts, centrifugal pumps and belt conveyors.

Features and Benefits

• Bored hub type
• Plain joint type
• Made from steel
• Maximum speed of 1000 rpm
• Maximum working angle of 45 degrees
• Single joint
• Bore of 20 mm
• Hub outer diameter of 42 mm
• Overall length of 82 mm
• Peak torque of 600 Nm

RS Pro Datasheet
