RS PRO Universal Joint, Single, Plain, Bore 10mm, 52mm Length, Шарнирная муфта

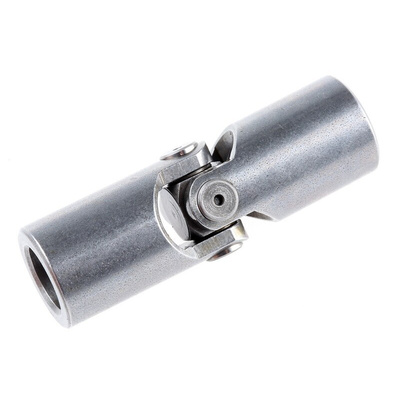

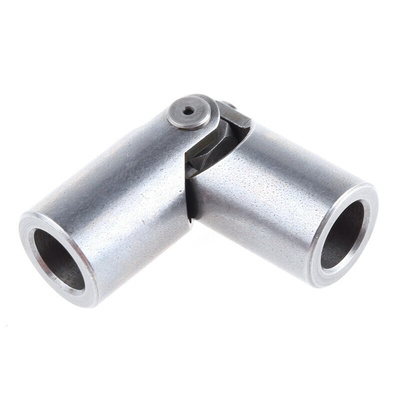

RS PRO Universal Joint, Single, Plain, Bore 10 mm, 52 mm Length

This universal joint from RS PRO is made for connecting rotating machinery to a prime mover, such as a drive shaft. It's often used in the automotive industry for joining two rotating shafts with differently inclined axes.
The part consists of two yokes and a four-point cross connecting them. This facilitates smooth and efficient transmission of torque between the two shafts, even when they're not in alignment. The joint is made of solid steel too, which is corrosion, wear and chemical resistant, so it's useable in a wide range of environments. It's also very easy to install and disassemble, which saves you time.
This part is rigorously tested by engineers for quality and durability. Universal joints like this one are used on pump shaft arms and joint mechanisms in production machinery.

Features and Benefits

• Bore of 10 mm
• Overall length of 52 mm
• Hub outer diameter of 16 mm
• Peak torque of 600 Nm
• Bored hub
• Single plain joint
• Steel material
• Maximum speed of 1,000 rpm (revolutions per minute)
• Maximum working angle of 45º

RS PRO Datasheet
