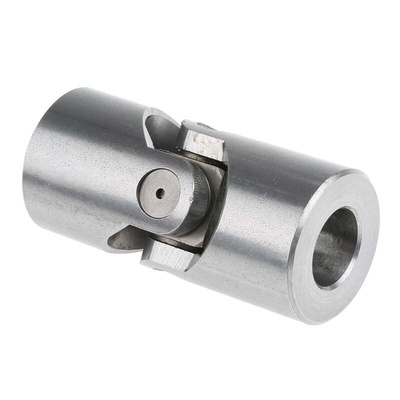

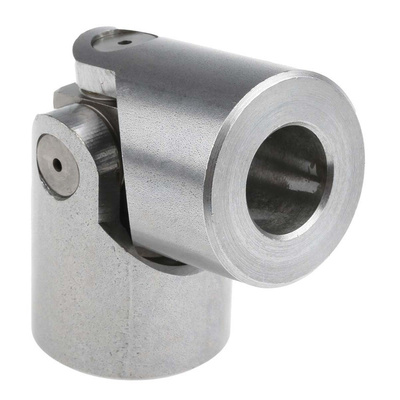

RS PRO Universal Joint, Single, Plain, Bore 25mm, 108mm Length, Шарнирная муфта

RS PRO Universal Joint, Single, Plain, Bore 25 mm, 108 mm Length

These universal joints from the reliable RS PRO brand are well-suited for connecting two vehicle shafts whose axes are set at an angle to each other. They're also ideal for connecting conveyors, line shafts and other rotating machinery to a prime mover.

Use these plain bearing universal couplings on applications with a maximum speed of 1000 rpm and an operating angle between 3° and 45°. We recommend the use of a protective gaiter as well as regular lubrication when used with machinery or in vehicles, as this will ensure a smooth operation.

Made from solid steel, the plain, single-joint type universal joints have a bored hub with an outer diameter of 50 mm. The bore size is 25 mm.

These couplings are part of the reliable RS PRO range and have been extensively tested for quality and durability. They're also RoHS compliant for minimal quantities of restricted hazardous substances.

Features and Benefits

• Universal joint
• Plain single-joint type
• Made from steel
• Bored hub type
• Maximum speed of 1000 rpm
• Hub outer diameter of 50 mm
• Bore size of 25 mm
• Overall length of 108 mm
• Peak torque of 600 Nm
• Maximum working angle of 45°
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
