RS PRO Universal Joint, Single, Plain, Bore 12mm, 62mm Length, Шарнирная муфта

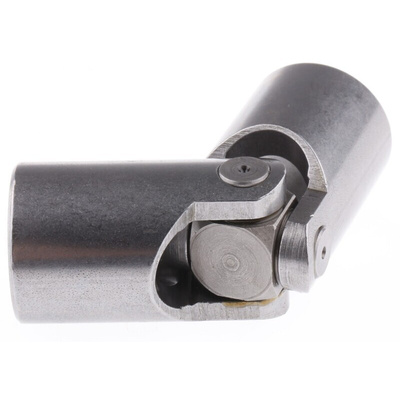

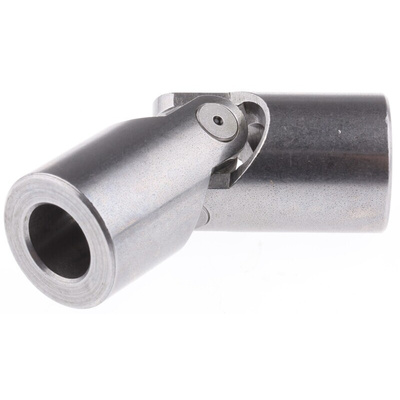

RS PRO Universal Joint, Single, Plain, Bore 12 mm, 62 mm Length

This RS PRO universal joint is designed to link rotating machinery to a primary mover, such as a drive shaft. It's frequently used in the automotive sector to connect two rotating shafts with axes that have different inclines.
The component is made up of two yokes connected by a four-point cross. Even when the two shafts are out of alignment, this construction allows for smooth and efficient torque transfer. The joint is also composed of solid steel, which is corrosion, wear and chemical-resistant. This means it's a good choice for use in a variety of demanding applications. It's also simple to assemble and disassemble, saving you time.
As part of the RS PRO range, this product has been tested for durability and quality by engineers. You'll find universal joints like this one on pump shaft arms and joint mechanisms in industrial machines.

Features and Benefits

• Bore of 12 mm


• Overall length of 62 mm


• Hub outer diameter of 22 mm


• Peak torque of 600 Nm


• Bored hub


• Single plain joint


• Steel material


• Maximum speed of 1,000 rpm (revolutions per minute)


• Maximum working angle of 45°

RS PRO Datasheet
