RS PRO Universal Joint, Single, Plain, Bore 16mm, 74mm Length, Шарнирная муфта

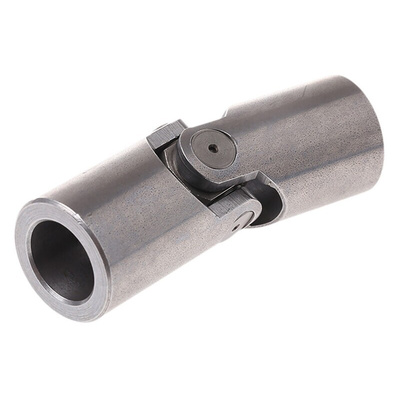

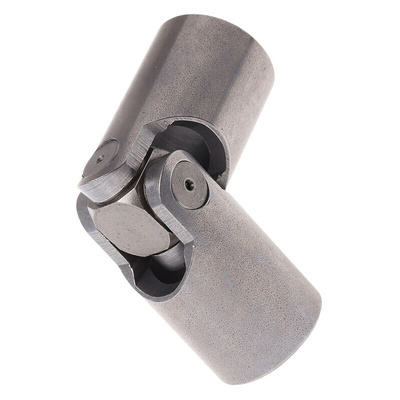

RS PRO Universal Joint, Single, Plain, Bore 16 mm, 74 mm Length

This RS PRO universal joint connects rotating machinery to prime movers such as drive shafts. It's commonly used in the automotive industry to link two rotating shafts with differently angled axes.
The part has a four-point cross that connects two yokes, enabling smooth and efficient torque transfer even when the two shafts are misaligned. The joint is also suitable for a wide range of applications as it's made of solid steel, which is resistant to corrosion, wear and chemicals. It also saves you time as it's simple to assemble and disassemble.
This item has been tested by engineers to ensure durability and quality. You can use a universal joint like this one for joint mechanisms in production machinery and pump shaft arms.

Features and Benefits

• Bore of 16 mm


• Overall length of 74 mm


• Hub outer diameter of 25 mm


• Peak torque of 600 Nm


• Bored hub


• Single plain joint


• Steel material


• Maximum speed of 1,000 rpm (revolutions per minute)


• Maximum working angle of 45°

RS PRO Datasheet
