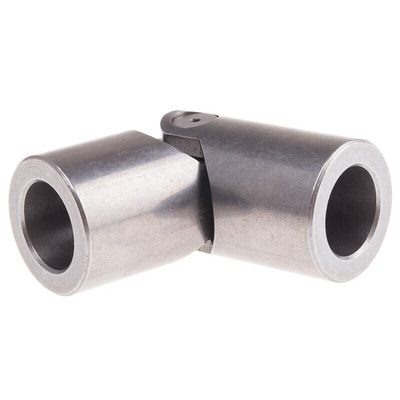

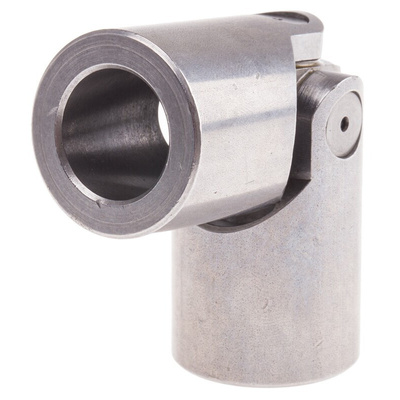

RS PRO Universal Joint, Single, Plain, Bore 20mm, 86mm Length, Шарнирная муфта

RS PRO Universal Joint, Single, Plain, Bore 20 mm, 86 mm Length

Universal joints for connecting a wide range of equipment where there is a misalignment greater than 5°. Suitable for connecting line shafts, drive shafts, conveyors and most types of rotating machinery to a prime mover. Plain bearing universal couplings are suitable for applications with a maximum speed of 1000 rpm and an operating angle of between 3 and 45 degrees. The use of a gaiter and regular lubrication is recommended with plain bearing couplings to ensure longevity of service.

Features and Benefits

• Plain single-joint type


• Made from steel


• Bored hub type


• Maximum speed of 1000 rpm


• Hub outer diameter of 32 mm


• Bore size of 20 mm


• Overall length of 86 mm


• Peak torque of 600 Nm


• Maximum working angle of 45°
