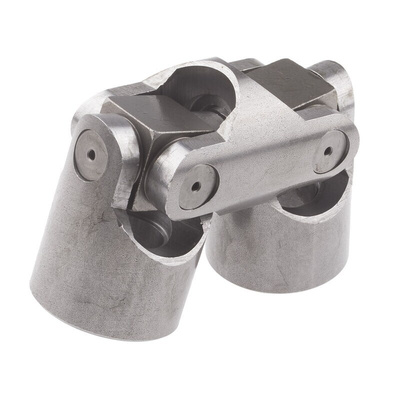

RS PRO Universal Joint, Double, Plain, Bore 25mm, 163mm Length, Шарнирная муфта

RS PRO Universal Joint, Double, Plain, Bore 25 mm, 163 mm Length

This universal joint from RS PRO is used to connect two rods or shafts with axes that have an inclined angle to each other. It's made of solid carbon steel material which can withstand extreme conditions without wear or decay, making it a durable component.
This joint is built to tolerate applications with a 1,000 revolutions per minute (rpm) maximum speed, so it's ideal for high-speed operations. It's also double-jointed, giving you the advantage of a maximum 90-degree working angle. This means your shafts have a broad range of rotation, which makes them suitable for installation on a wide range of equipment.
Engineers have stringently tested this part for quality and durability. Universal joints like this are commonly used on drive shafts, joint mechanisms in manufacturing equipment and pump shaft arms.

Features and Benefits

• Bore of 25 mm
• Overall length of 163 mm
• Hub outer diameter of 50 mm
• Peak torque of 600 Nm
• Bored hub
• Plain double joint
• Carbon steel material
• Maximum speed of 1,000 rpm
• Maximum working angle of 90º

RS Pro Datasheet
