RS PRO Universal Joint, Single, Needle Roller, Bore 14mm, 60mm Length, Шарнирная муфта

RS PRO Universal Joint, Single, Needle Roller, Bore 14 mm, 60 mm Length

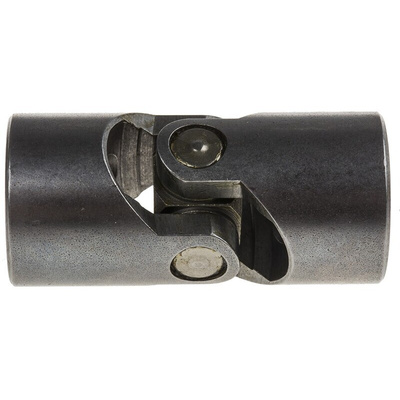

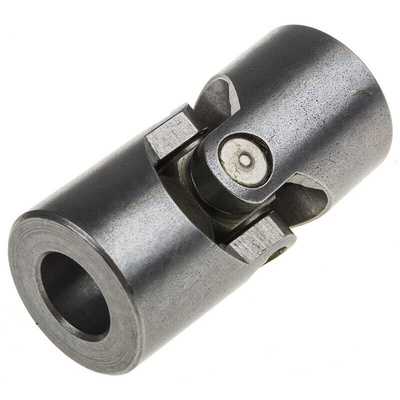

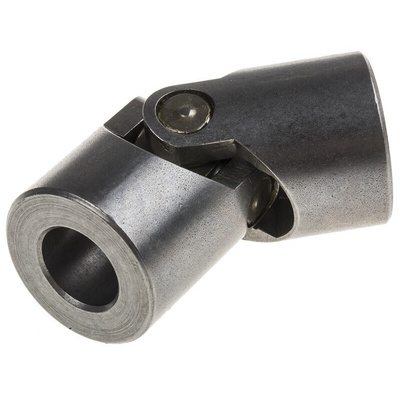

This universal joint from RS PRO connects two rotating parts to a prime mover for torque transmission. This one is a needle roller version, so it's equipped with roller bearings that reduce friction in high-speed applications, such as rotating manufacturing equipment.
This part is made of carbon steel, which has good shock resistance and is extremely strong. This means it's well-suited for repeated use and requires no maintenance. You don't have to worry about greasing it either, as the lubrication in the bearings lasts for the lifetime of the joint.
This product is also rigorously tested by engineers for quality. A universal joint, such as this one, is often used as a connector in production machinery or as part of a drive shaft.

Features and Benefits

• Bore of 14 mm
• Overall length of 60 mm
• Hub outer diameter of 28 mm
• Peak torque of 200 Nm
• Bored hub
• Single needle roller joint
• Carbon steel material
• Maximum speed of 4,000 rpm (revolutions per minute)
• Maximum working angle of 45º
