19323-0011, Molex, VersaKrimp Uninsulated Ring Terminal, M8 (5/16) Stud Size, 1mm² to 2.5mm² Wire Size, Обжимные контакты

Molex VersaKrimp Uninsulated Crimp Ring Terminals

Avikrimp™ insulated metric crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are made from oxygen free copper with tin plating and have a tin plated brass ferrule. A double crimp is created with both the conductor and insulation which provides good vibration resistance. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws.

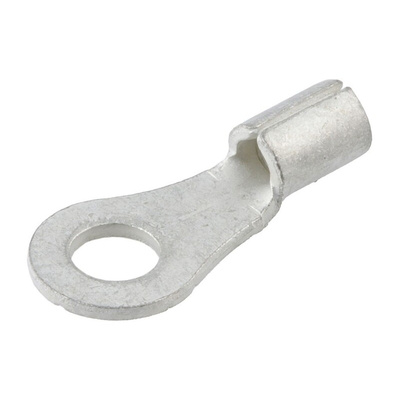

Molex VersaCrimp Series Ring Terminal, Copper Alloy Contact, 8.51mm Inner Ring Diametre - 19323-0011

This Molex ring terminal is a high quality, durable product designed for various applications in the automation, electronics, electrical, and mechanical industries. With copper alloy construction and tin plating, this ring terminal ensures maximum electrical performance and is ideal for wire sizes ranging from 1mm² to 2.5mm². The VersaCrimp series ensures seamless barrel connection, eliminating the need for proper orientation during crimping.

Features & Benefits

• Copper alloy construction for enhanced conductivity
• Tin plating prevents oxidation, ensuring reliable crimping
• Suitable for wire sizes from 1mm² to 2.5mm²
• VersaCrimp seamless barrel design for easy and efficient crimping
• Durable construction for long lasting performance
• Maximum wire size compatibility up to 2.5mm²
• Uninsulated design for versatile applications
• M8 stud size compatibility for various connections

Applications

• Industrial electrical panels
• Wiring harnesses in automotive aftermarket
• Terminal blocks for electronics
• Consumer appliances and white goods
• HVAC systems

Can it be used with wire sizes other than 1mm² to 2.5mm²?

Yes, the Molex ring terminal is compatible with wire sizes ranging from 1mm² to 2.5mm², providing versatile applications.

Is the tin plating durable for long-term use?

The tin plating on the ring terminal ensures protection from oxidation, maintaining high conductivity and reliability.

Can it be used in automotive wiring applications?

Yes, the Molex ring terminal is ideal for use in automotive aftermarket wiring harnesses, ensuring optimal performance and durability.

VersaKrimp and Avikrimp Ring Terminals Brochure

VersaKrimp™ Un-insulated Metric Ring Terminals

Line Drawing
