A9S60120, Schneider Electric 1P Pole DIN Rail Isolator Switch - 20A Maximum Current, IP40

Acti9 iSW Switch Disconnectors

iSW switch-disconnectors for control of opening and closing of circuits under load

Rating: 20 to 125 A
VisiSafe for safe operation and maintenance work on circuit protection
Available options: state indication; sealable terminal shield, rotary handle, padlocking device

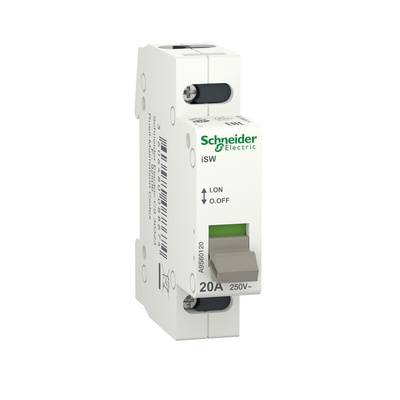

Schneider Electric Isolator Switch, Fixed Mount, 250V AC Operational Voltage - Acti9 iSW Series - A9S60120

Put safety at the top of your priority list with this isolator switch from Schneider Electric. It physically disconnects an electrical circuit from the power supply so you can carry out routine maintenance and repairs. As it clips straight onto a DIN rail, you can set it up in a flash. With compact dimensions of 77 (H) x 18 (W) x 70mm (D), it slots neatly into systems where space is at a premium. An IP40 rating means the enclosure keeps tools, wires and objects larger than 1mm at bay, protecting the controller from harm.

Features & Benefits

• Durable design delivers 300,000 mechanical cycles
• On/off indicator is easy to read
• Toggle control enables straightforward operation
• Rated impulse withstand voltage of 4kV indicates protection against surges
• Operating temperature range of -20°C to +50°C means it performs well in challenging conditions

Applications

• Power distribution systems
• Industrial control panels
• HVAC installations
• Telecommunications

What's the housing made from?

The housing has a high polyamide content, which is durable and heat-resistant, making it an excellent choice in industrial settings.
