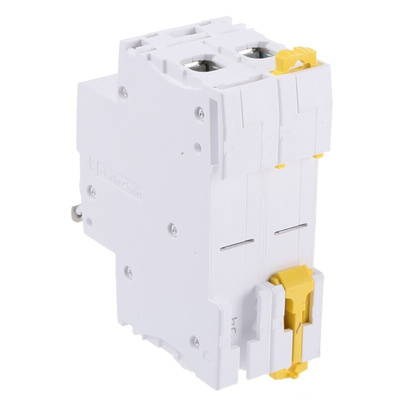

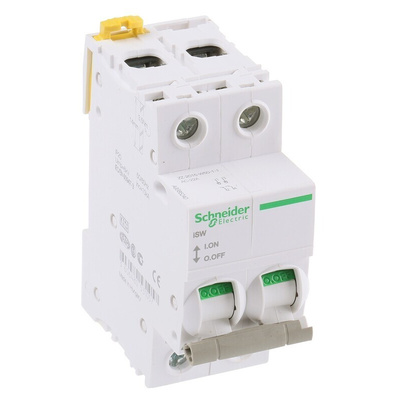

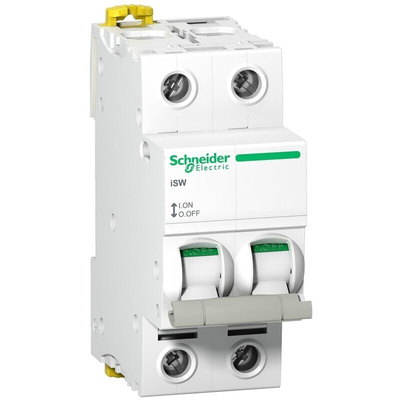

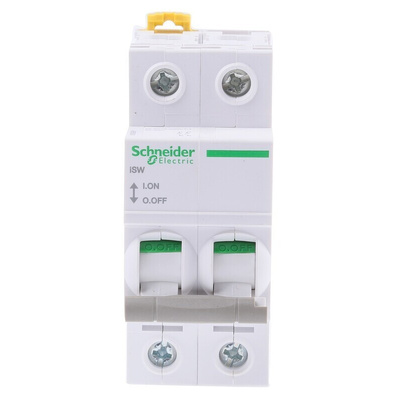

A9S65240, Schneider Electric 2P Pole DIN Rail Isolator Switch - 40A Maximum Current, IP20

Acti9 iSW Switch Disconnectors

iSW switch-disconnectors for control of opening and closing of circuits under load

Rating: 20 to 125 A
VisiSafe for safe operation and maintenance work on circuit protection
Available options: state indication; sealable terminal shield, rotary handle, padlocking device

Schneider Electric Isolator Switch, 415V AC Operational Voltage, 82 (H) x 36 (W) x 75.5mm (D) - Acti9 iSW Series - A9S65240

When it comes to keeping things safe, this Schneider Electric isolator switch is your trusty sidekick. Just flick the lever to sever the connection between two circuits and the power source, preparing your equipment for maintenance and repairs. A highly visible on/off indicator ensures you know the unit's status at a glance. This switch-disconnector protects people and machinery through unexpected surges thanks to its rated impulse withstand voltage of 6kV. An IP20 rating means the enclosure is touch-proof and keeps out objects larger than 12mm.

Features & Benefits

• Delivers a long service life of 20,000 mechanical and 15,000 electrical cycles
• Mounts on a DIN rail for easy installation
• Operating temperature range of -25°C to +60°C for performance in extreme settings
• 40A current rating supports demanding systems

Applications

• Production lines
• Electrical distribution systems
• Leisure centres

Is this switch environmentally friendly?

Yes, this product is free from toxic heavy metals, halogen, mercury and substances of very high concern, helping limit exposure to those potentially harmful elements.

A9S65240 Datasheet

Product Environmental Profile
