A9S65292, Schneider Electric 2P Pole DIN Rail Isolator Switch - 125A Maximum Current, IP20

Acti9 iSW Switch Disconnectors

iSW switch-disconnectors for control of opening and closing of circuits under load

Rating: 20 to 125 A
VisiSafe for safe operation and maintenance work on circuit protection
Available options: state indication; sealable terminal shield, rotary handle, padlocking device

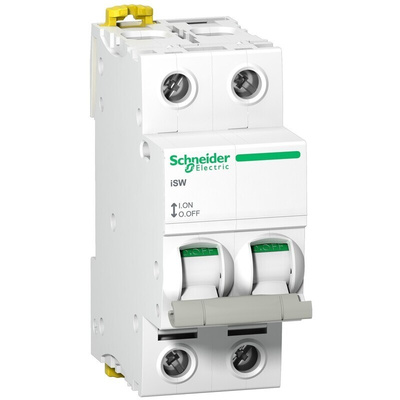

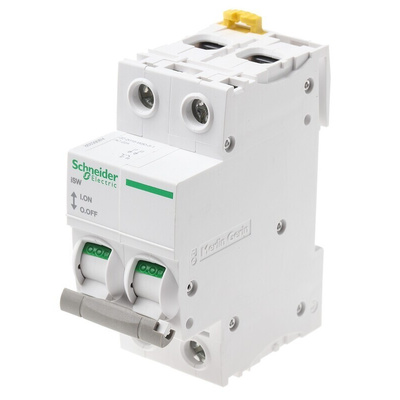

Schneider Electric Isolator Switch, Rail Mounting, 240V AC Voltage Rating - Acti9 Series - A9S65292

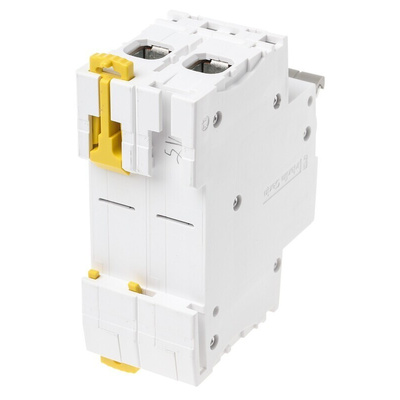

Disconnect your gear in no time with a flick of this isolator switch from Schneider Electric. It shuts off the power to an appliance, letting you get hands-on during maintenance without being exposed to dangerous electrical loads. The unit's two poles cut the live and neutral wires at the same time so you don't need to isolate circuits separately. A snappy lever actuator on the device's front plate makes switching it on and off a breeze. A yellow clip on the back of the unit makes installation on a standard DIN rail quick and simple.

Features & Benefits

• Colour-coded on/off labelling clearly shows circuit status for quick checking
• Electrical lifespan of 2,500 operations means it's durable over long periods
• Pushes through surge voltages up to 6kV, minimising risk of machine damage
• IP20 rating means it's touch-proof for handling without the risk of electric shocks

Applications

• Domestic power networks
• Retail units
• Server management

Can I use this switch to isolate my industrial hardware?

No. It works with single-phase supplies, so it's recommended for domestic and light-duty commercial applications, not for more demanding three-phase industrial systems.
