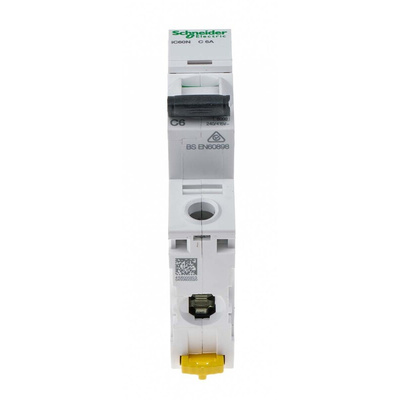

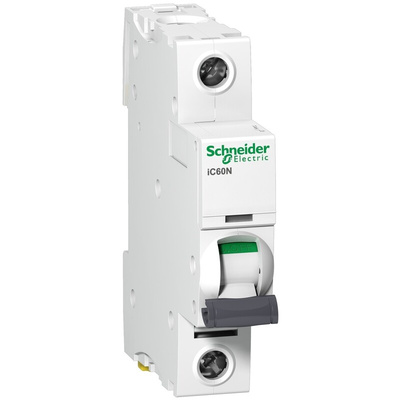

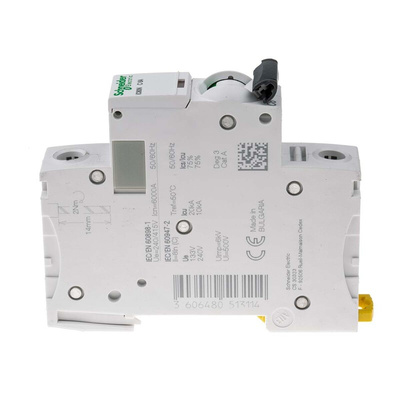

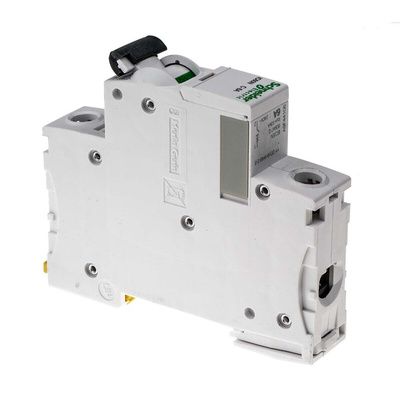

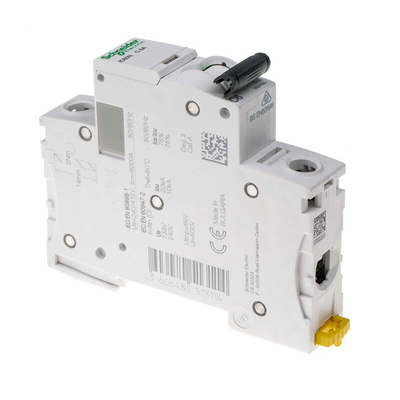

A9F44106, Schneider Electric Acti 9 iC60N MCB, 1P, 6A Curve C, 100 → 133V AC, 12 → 48V DC, 6 kA Breaking Capacity

Schneider Electric Acti9 iC60N MCBs 1 Pole

Acti 9 Schneider iC60N series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime

Benefits and Features

• Downstream circuit is always safe
• Class-2 insulation: ensures continuous protection for both operators and unqualified persons
• Insulated terminals (IP20)
• Highly durable with robust connections that provide twice the standard tightening torque
• Provide greater continuity of service thanks to VisiTrip.
• Double clip for dismounting with comb busbar in place

Standards

IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).

Q: What is the differences in the Tripping Curves B, C, and D?

A: Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric MCB, 6A Current Rating, DIN Rail Mounting - Acti9 Series - A9F44106

Beef up the monitoring and protection of your electrical circuit with this MCB from Schneider Electric. The breaker offers a comprehensive safety package, as it safeguards against short circuits and current overload. A high insulation voltage of 500V AC means equipment and personnel are protected against the risk of harmful electrical arcs. For spot checking, a window on its front face shows clearly when a fault occurs. With a mechanical endurance of up to 20,000 cycles, you can rely on this MCB to hold its own in harsh industrial environments.

Features & Benefits

• IP20-rated terminals are protected against human touch and objects larger than 12mm
• Clips onto a DIN rail, for quick and tool-free installation or removal
• Large labelling area, so you can easily identify different circuits
• End-of-life optimised to reduce waste and allow for recovery of component materials

Applications

• Food and beverage industries
• Pharmaceutical manufacturing
• Textile industry
• Paper and pulp mills

How do I reset this MCB?

This device has a toggle switch, so it's quick and simple to reset manually.

Acti9 iC60N circuit breakers data sheet

Multi9 to Acti9 Reference Guide

Acti9 Ordering Guide
