A9D31806, Schneider Electric RCBO, 6A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, Acti 9 Range, Автоматический выключатель

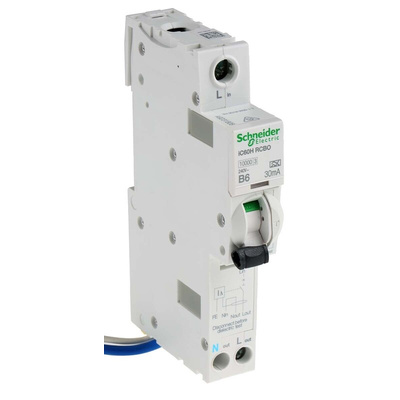

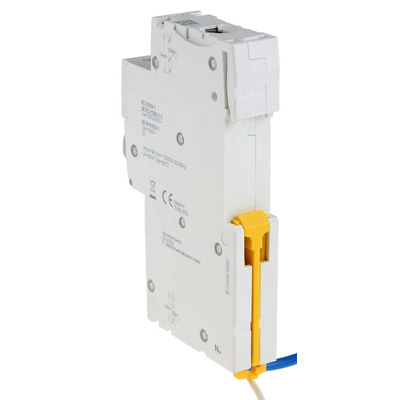

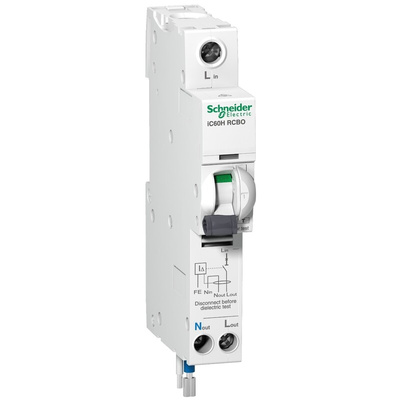

Schneider Electric RCBO, 6A Current Rating, 30mA Trip Sensitivity - Acti 9 Series - A9D31806

Fit this Schneider Electric RCBO to your distribution board to ensure excessive loads don't trip you up. By combining both overcurrent and residual current protection in one compact device, it efficiently safeguards against short circuits, overloads and electric shocks. It's capable of detecting leakage currents as low as 30mA, making it a sensitive safety device. Thanks to the RCBO's modular design, it's a doddle to add extra functions, such as an auxiliary fault indicator for remote monitoring or a voltage release (791-2799) to guard against power drops.

Features & Benefits

• Mechanical lifespan of 20,000 cycles means it's durable
• Mercury-free design makes it safe to use and possible to recycle
• Wide operating temperature range between -15°C and +60°C, to handle harsh conditions
• Thermal-magnetic mechanism trips as soon as a fault is detected for reliable electrical safeguarding

Applications

• Residential buildings
• Care homes
• Offices

Is this RCBO easy to use?

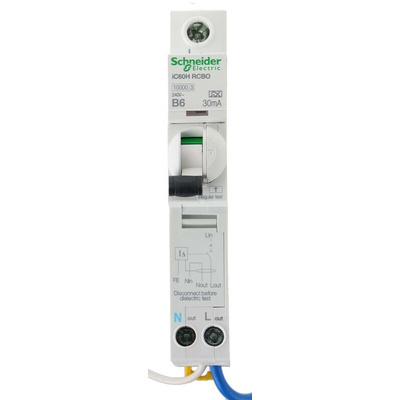

Yes, it's a user-friendly option with a trip window that shows red when a faulty circuit's detected. A green position indicator means you always know when the circuit is safe to work on.

Datasheet

Instruction Sheet - iC60 RCBO A9D Series

Product Environmental Profile
