A9D31832, Schneider Electric RCBO, 32A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, Acti 9 Range, Автоматический выключатель

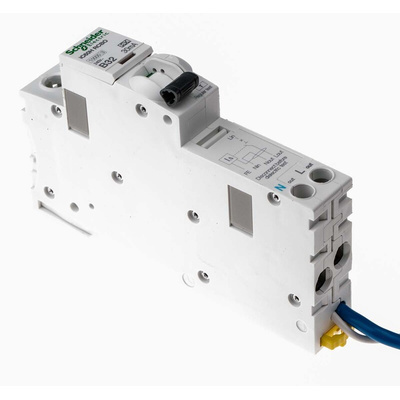

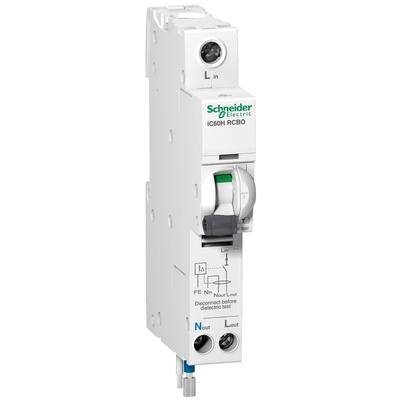

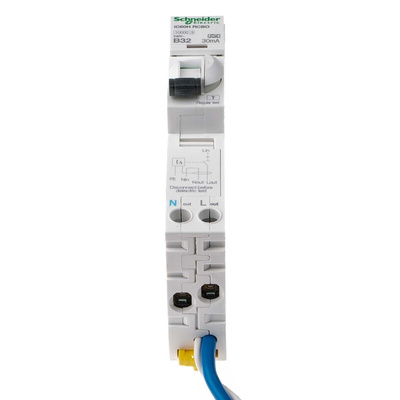

Schneider Electric RCBO, 32A Current Rating, 1P+N Pole Format - Acti 9 Series - A9D31832

Need to restore the balance of power in your setup? This RCBO from Schneider Electric tackles residual current and overcurrent to give you all-round electrical protection. The device has a 10,000A breaking capacity at 240V AC, so it handles severe fault conditions without failing or causing damage to connected equipment. Earth-leakage sensitivity of 30mA prevents nuisance tripping, ensuring your system runs without a hiccup. The red trip indicator means you won't waste time finding the faulty circuit. A green stripe on the toggle indicator makes it clear which circuits are safe to work on.

Features & Benefits

• Screw terminals provide a reliable wire attachment
• Clip-on mounting makes DIN rail fitting speedy and secure
• Instantaneous earth-leakage detection time prevents electrical problems from escalating

Applications

• Retail premises
• Food and drink production
• Automotive workshops

What type of tripping curve does this RCBO have?

It has a type-B curve, which means the RCBO trips as soon as it detects a current that's 3 to 5 times its 32A current rating. This makes it ideal for modern electronic devices that experience low surge levels.

Datasheet

Instruction Sheet - iC60 RCBO A9D Series

Product Environmental Profile
