A9D19210, Schneider Electric RCBO, 10A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range, Автоматический выключатель

Schneider Electric Acti9 iC60H RCBOs Range

iC60H RCBO carries out complete protection of final circuits:

• Protection against short-circuits and cable overloads


• Protection of persons against electric shock by direct contact (10, 30 mA sensitivities)


• Protection of persons against electric shock by indirect contact (100 mA sensitivity)


• Protection of equipment against fires set by leakage currents (100 mA sensitivity)

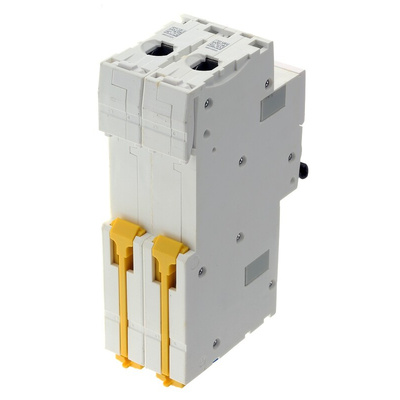

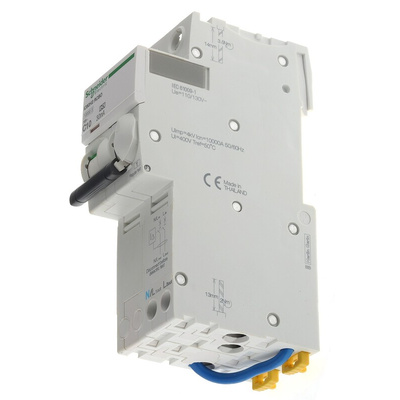

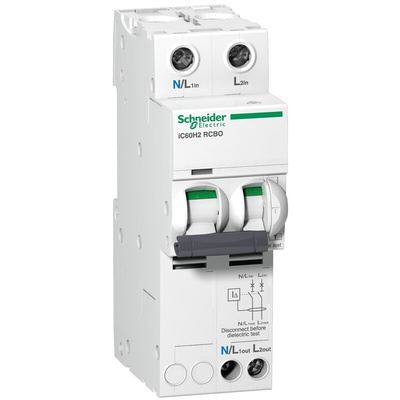

Schneider Electric RCBO, 2 Poles, 10A Current Rating - Acti 9 Series - A9D19210

Want to combine the benefits of an RCD and MCB in a single package? Turn to this RCBO from Schneider Electric. It automatically breaks an attached circuit in the event of a short circuit or overload, helping to prevent electrical damage and keep your equipment in top form. Once tripped, it's a breeze to reset the unit by simply flipping the toggle switch. Thanks to a voltage rating of 110V AC, this is a good choice for use in low-power setups. As it clips into place on a DIN rail, installation is done and dusted in a snap.

Features & Benefits

• IP20 rating means it's finger-safe and protected from objects larger than 12mm
• Wide operating temperature range between -15°C and +60°C for use in demanding environments
• Screw clamp terminals for secure, vibration-proof wiring
• Accommodates a padlock to prevent tampering
• Compact dimensions of 110 (H) x 36 (W) x 75.5mm (D) to maximise space on your rail

Applications

• Manufacturing facilities
• Industrial automation
• Control systems

What lifespan can I expect from this RCBO?

This unit has a mechanical durability of 20,000 cycles and an electrical durability of 5000 cycles, so it's a long-lasting option.
