A9D11810, Schneider Electric, Автоматический выключатель

Schneider Electric Acti9 iC60H RCBOs Range

iC60H RCBO carries out complete protection of final circuits:

• Protection against short-circuits and cable overloads
• Protection of persons against electric shock by direct contact (10, 30 mA sensitivities)
• Protection of persons against electric shock by indirect contact (100 mA sensitivity)
• Protection of equipment against fires set by leakage currents (100 mA sensitivity)

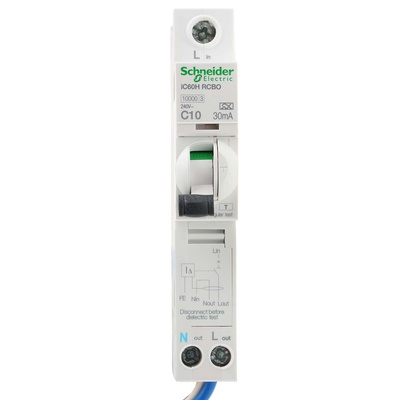

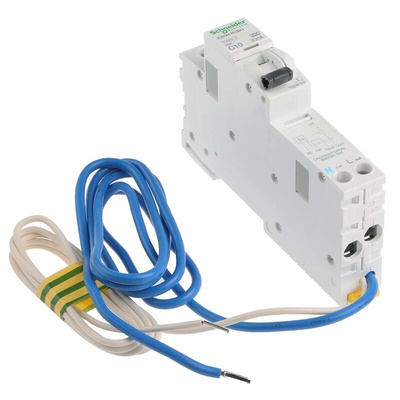

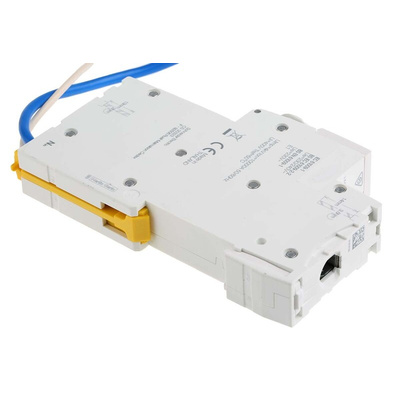

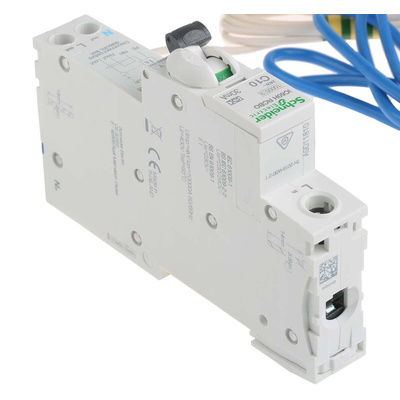

Schneider Electric Earth Leakage Circuit Breaker - A9D11810

Forming part of the Acti9 range, Schneider's RCBO (residual current breaker with overcurrent protection) has been created and designed to act as a safety device and is used in electrical installations with high earth impedance to prevent shock. The A9D11810 is a single-phase, self-contained residual current device that carries out complete protection of final circuits.

Features & Benefits

• Features earth leakage sensitivity of 30 mA
• A typical application of the device is within a distribution environment
• 1P + N - pole configuration
• Earthing system is TN
• Curve code - C
• The breaking capacity is 10000 A Icn at 240 V AC 50/60 Hz
• ON/OFF locking facilities
• Features an IP degree protection of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• The residual current tripping technology is voltage dependant
• DIN rail mounting type, also the option for clip-on mounting mode
• The dimensions of this circuit breaker are H110 mm x W18 mm x D77.5 mm
• Standards - BS EN 61009-1, IEC 61009-1, IEC 61009-2-2 and AS/NZS 61009.1
