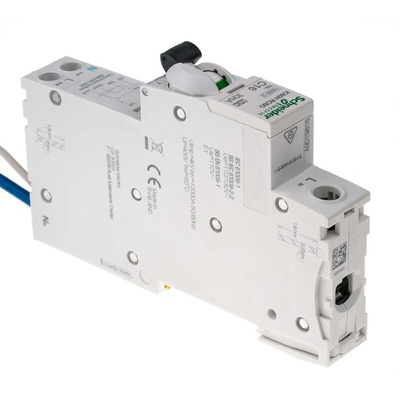

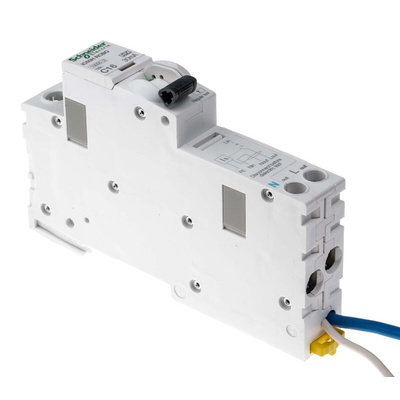

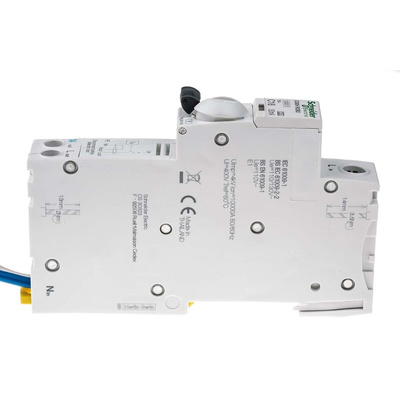

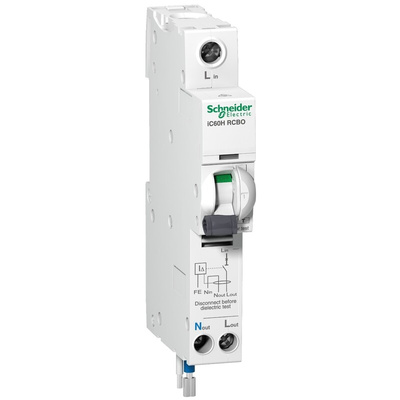

A9D19816, Schneider Electric RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range, Автоматический выключатель

Schneider Electric RCBO, DIN Rail Mounting, 20,000 Cycles Mechanical Durability - Acti 9 Series - A9D19816

Get top marks for electrical safety with this RCBO from Schneider Electric. It's a triple threat against electrical hazards, providing protection from short circuits, current overload and earth-leakage currents in one device. When it senses irregular current, the unit quickly cuts off the power supply, keeping you safe from electric shocks. Its type-C tripping curve means it trips at between 5 and 10 times its 16A current rating, so it's suitable for applications with high inductive loads like electric motors. Want to get going again after a trip? Simply flip the front-facing toggle switch to reset the breaker.

Features & Benefits

• Ambient operating temperature range between -15°C and +60°C for safe use in harsh conditions
• Instantaneous earth-leakage protection helps prevent electric shocks
• Mechanical durability rating of 20,000 cycles for long-lasting use and reduced maintenance

Applications

• Control panels
• Packaging plants
• Conveyor belts
• Electric motors

How can I tell the operating status of this RCBO?

Thanks to the built-in contact position indicator that shows its status in a red or green colour, you can swiftly tell if this RCBO is on or off.

How do I mount this RCBO?

Mount it by clipping it onto a DIN rail, which removes the need for complex tools.
