A9D11832, Schneider Electric RCBO, 32A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range, Автоматический выключатель

Schneider Electric Acti9 iC60H RCBOs Range

iC60H RCBO carries out complete protection of final circuits:

• Protection against short-circuits and cable overloads


• Protection of persons against electric shock by direct contact (10, 30 mA sensitivities)


• Protection of persons against electric shock by indirect contact (100 mA sensitivity)


• Protection of equipment against fires set by leakage currents (100 mA sensitivity)

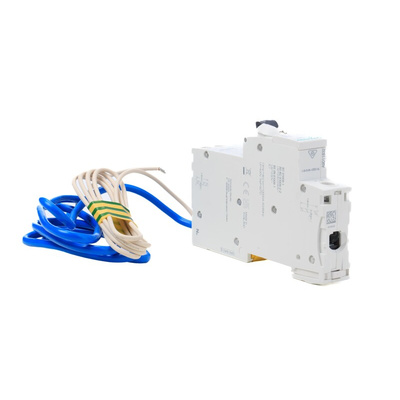

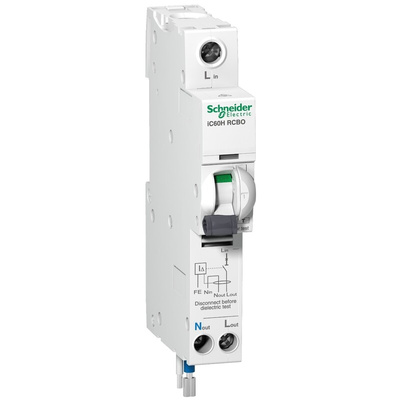

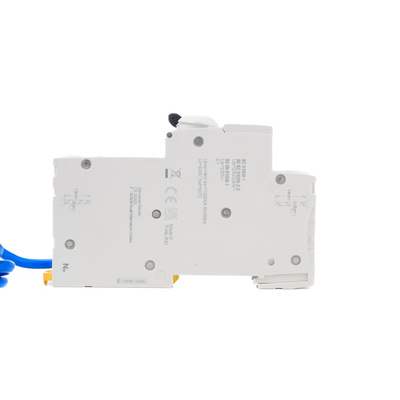

Schneider Electric RCBO, 1P+N Configuration, Type-C Tripping - iC60H Series - A9D11832

Stop rogue currents taking a dangerous path with this RCBO from Schneider Electric. Its thermal-magnetic trip mechanism quickly cuts the power when residual currents, overloads and short circuits are detected. This means accidental breaks in cables and wiring errors won't cause harm and machine fire safety is given a boost. An earth-leakage sensitivity of 30mA ensures users are protected from the risk of shocks. One pole plus neutral configuration ensures this RCBO is well-suited to TN earthing systems.

Features & Benefits

• Operates reliably between -15°C and +60°C, to handle harsh temperatures
• Toggle control and on/off indicators ensure it's user-friendly
• Clip on DIN rail mounting for speedy and secure installation
• Insulated terminals keep your fingers safe from accidental electrical contact

Applications

• Residential buildings
• Emergency lighting
• Domestic appliances
• Office units

Can I padlock this RCBO for safety?

Yes. This RCBO is lockable in the off position. The toggle can be secured with a padlock that has a maximum shackle diameter of 4mm. This lets you confidently carry out electrical work on downstream equipment without the risk of accidental reactivation.
