A9D56625, Schneider Electric RCBO, 25A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, Acti 9 Range, Автоматический выключатель

Schneider Electric RCBO, 30mA Earth-Leakage Sensitivity, 6kA Breaking Capacity - Acti 9 Series - A9D56625

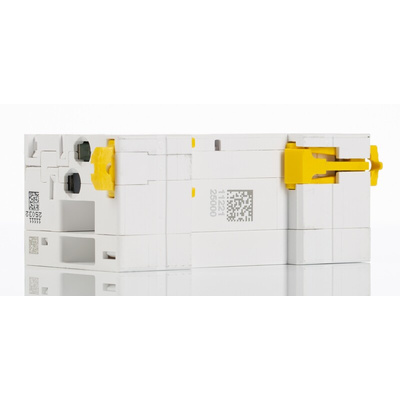

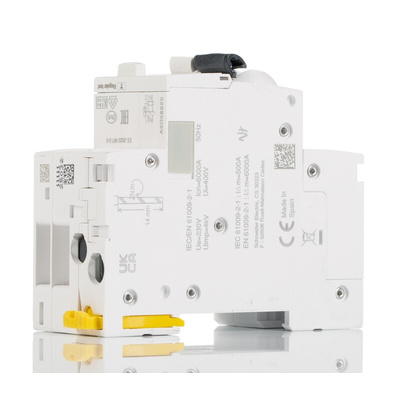

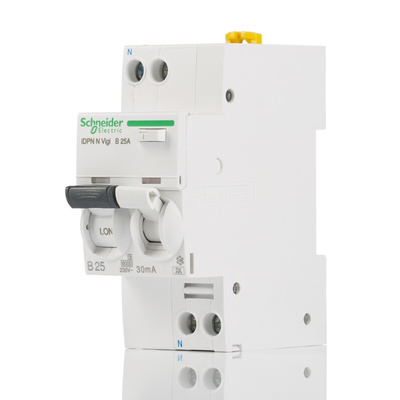

Protect your electric circuits from overcurrents and earth leakage faults with this RCBO from Schneider Electric. It features thermal-magnetic trip technology with type-B characteristics, which means it cuts power at three to five times its rated current of 25A. This gives you instantaneous protection from overloads, which is useful for circuits with low switching surges. This unit also falls into the type-A earth leakage protection class, so it can safeguard you from electric shocks caused by AC leakage currents. It comes with a padlocking device to enable proper LOTO during maintenance.

Features & Benefits

• 4kV rated impulse withstand voltage to handle sudden voltage spikes without damage
• Wide operating temperature range of -25°C to +60°C for use in demanding conditions
• Current rating of 25A makes it suitable for high-current applications
• Mechanical durability of 20,000 operating cycles for long-term use

Applications

• Domestic wiring
• Medical equipment
• Measurement and instrumentation devices

Is this RCBO finger-safe?

Yes, this unit's IP40 rating indicates that it's protected from objects larger than 1mm in size, including your fingers.

How do I mount this RCBO?

The unit comes with built-in clips for quick and tool-free mounting on a DIN rail.

Acti9 iDPN Brochure

Datasheet - A9D56625
