MEAN WELL Switching Power Supply, RSP-150-5RS, 5V dc, 30A, 150W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

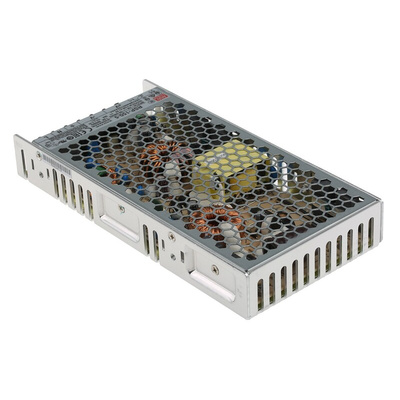

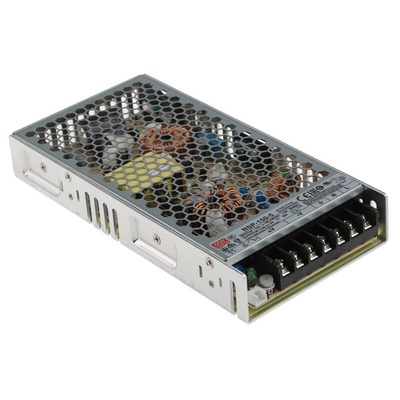

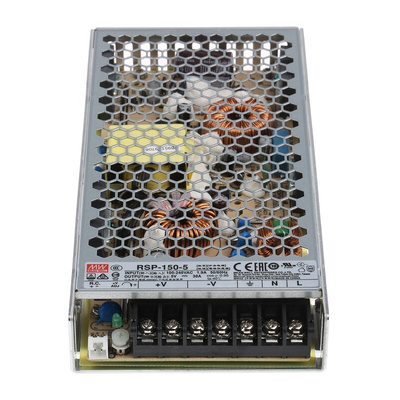

Mean Well Switch Mode Power Supply

The Mean Well RSP-150 series 150W single output AC to DC embedded switch mode power supply has an output current rating of 30A at 5VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 370VDC. This switch mode power supply reduced its height by 40% as compared to 50mm of the previous models to 30mm in the newer ones.

Features and Benefits

high-efficiency up to 90%
Low profile design 30mm, suitable for 1U installation
Built-in active PFC function
high-efficiency up to 90%
Fan-less design, cooling by free air convection
Short circuit
Overload
Overvoltage and over temperature
Built-in constant current limiting circuit
Remote ON/OFF control
LED indicator for power ON
Operating temperature ranging between -30°C and +70°C

Applications

Industrial automation system
Mechanical
Electrical equipment
Household appliance
Instruments or any systems that require 1U low profile installations

Certifications

UL60950-1
UL62368-1 / TUV EN60950-1
EN61558-1
EN61558-2-16 / CCC GB4943 / CB IEC60950-1
IEC62368-1
TUV approved
CCC approved
CB approved
CE approved
