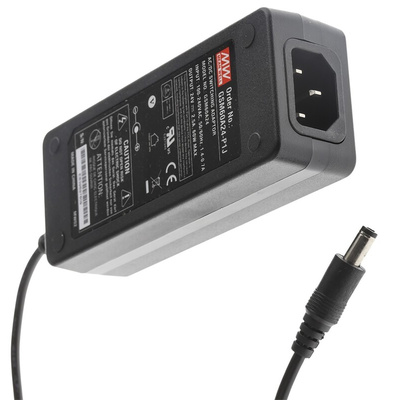

GSM60A24-P1J, MEAN WELL Power Brick AC/DC Adapter 24V dc Output, 2.5A Output, Блок питания

Mean Well Desktop Power Supply

The Mean well GSM60 series is a 24VDC desktop power supply with a high-quality desktop AC/DC adapter. It provides 60W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage range is 80VAC to 264VAC, its maximum input current is 65A. This product is equipped with a 3-pin standard IEC320-C14 power plug. The series has been designed to adhere to 2*MOPP international medical standards, offering ultra-low leakage current.
The GSM series is an efficient range, boasting up to 91% efficiency coupled with an extremely low no-load power consumption below 0.1W.

Features and Benefits

Output current is 2.5A
Complies with level V efficiency rating
Class I power (with earth pin)
Low leakage current is less than100uA
Integrated active PFC function
LED indication of power status
Fully enclosed plastic casing
Industry standard protection such as short-circuit, overload, over voltage and over temperature
Cooling by free air convention
Working temperature is ranges between -30°C and 70°C

Applications

Medical equipment
Portable medical equipment
Home healthcare equipment
Electrical systems

Certifications

Medical safety approved
ANSI/AAMI ES60601-1
TUV EN60601-1
EN55011 (CISPR11) class B
EN61000-3-2,-3
FCC PART 15 class B
EN61000-4-2,3,4,5,6,8,11
EN55024
EN60601-1-2
EN61204-3 medical level, criteria A

GSM60A Series 60W AC-DC Single Output Medical Type Data Sheet
