HBG-240-48A, MEAN WELL LED Driver, 48V Output, 240W Output, 5A Output, Constant Voltage Dimmable, Драйвер светодиодов

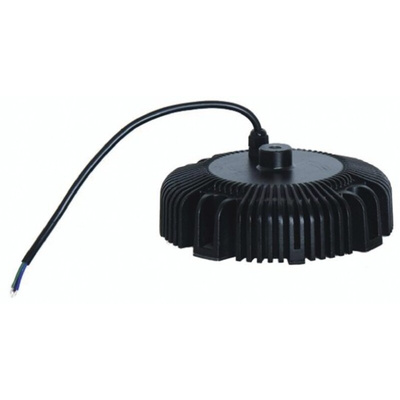

240W IP65 LED Driver Power Supply Bay Lighting HBG-240 Series

The Mean Well HBG-240 is a series of LED Power supplies to fulfil the various illumination demands. These LED drivers feature a circular design which fits perfectly in the structure of high bay and low bay lighting fixtures. The HBG-240 is fully potted IP65 rated and can withstand indoor and outdoor harsh environment. The aluminium enclosure of this LED power driver can be tightly assembled to heat sinks providing excellent heat dissipation ability. Designed with up to date high efficiency topology these LED Drivers possess up to 93.5% of high efficiency and can be cooled by free air convection from -40°C to +60°C ambient temperature. This version A of the HBG-240 Series features a mechanism to adjust the current range from 60% to 100% by internal potentiometer. These constant current LED drivers are suitable for applications such as LED high/low bay lighting, mining lighting, stage lighting, LED spot lighting and outdoor architectural lighting.

Circular shape design with aluminium case
93.5% high efficiency
Wide range input 90 to 305VAC
Built-in active PFC function
Complies with harmonic current limitation EN61000-3-2 Class C (60% load)
Meet 4kV surge immunity level (IEC61000-4-5)
Cooling by free air convection
-40 to +60°C working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
40,000 hours service life (Tc˂70°C)
Fully potted IP65 rated
5 year warranty

Approvals

UL, CUL, ENEC, CB, CE
EN61347-2-13, UL8750

Mean Well LED Drivers, Constant Current

HBG-240 Series 240W Single Output Switching Power Supply Data Sheet

Guide to Buying LED Drivers
