RE17RAMU, Schneider Electric RE17R Series DIN Rail Mount Timer Relay, 24 V dc, 24 → 240V ac, 2-Contact, 0.1 s →

Schneider Electric Zelio RE17R Timing Relay Series

A series of timing relays designed to time events by closing or opening contacts before, during or after a set time period. Ideal for industrial automation systems they can be mounted on DIN rails or directly. Enabling the set up of simple automation cycles using wired logic, these timers can also be used to compliment the functions of PLCs. Making it possible to have several output circuits this ranges relay outputs also provide complete isolation between the supply circuit and the output. Featuring a diagnostic button which assists with commissioning and troubleshooting these relays are also energy efficient and reliable with a wide choice of outputs (either screw or spring connection terminals).

Features and Benefits:

• LED state indicator
• Simple, fast and easy to set up
• Flexible, Compact and high performing
• Relay or Solid-state output
• Module DIN rail mount, miniature plug-in and panel mount
• Single or Multiple function
• Power supply voltage range from 24 to 240 V
• Selector switch on front panel

Protection ratings & Safety features:

• Compliant with international standards and certifications IEC 61812-1, EN 61812-1 UL, CSA, GL, RCM, EAC, CCC, China ROHS
• IP50 (front panel) conforming to IEC 60529
• IP40 (housing) conforming to IEC 60529
• IP20 (terminal block) conforming to IEC 60529
• Shock resistance - 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
• Vibration resistance - 20 m/s² (f = 10...150 Hz) conforming to IEC 60068-2-6

Applications - Time Delay Relays are typically used in industrial applications and play an important role for many industrial processes such as small panel or sub-panels requirements. Other applications include:

• Lighting circuits
• Motor start control
• Sensitive equipment
• Safety control
• Conveyor belt sequence delay
• Machines, single machine and automation
• Buildings, door locks and roller shutters
• Water segment such as pumping and irrigation
• HVAC, fans and water systems

Note

Off-delay function available in RS 791-2723

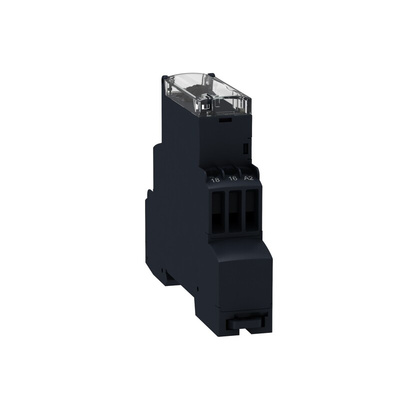

Schneider Electric Timer Relay, 8A Current Rating, 17.5 (W) x 90 (H) x 72mm (D) - Harmony Series - RE17RAMU

Coordinate your industrial processes with this timer relay from Schneider Electric. Thanks to its delay function, you can set it to automatically switch after a pre-set period, so its contacts open and close right when they need to. To support all sorts of control tasks, the delay can be fixed anywhere between 0.1 seconds and 100 hours. Programming the unit's a breeze thanks to its front-mounted selector switch. As the relay reacts to signals in under 100ms, it's a safe bet when responsive switching is essential.

Features & Benefits

• Compact measurements of 17.5 (W) x 90 (H) x 72mm (D) so it fits into busy cabinets
• Mounts onto a standard DIN rail for quick, tool-free installation
• Screw terminals keep fingers away from conductors for safe handling
• Repeat accuracy of ±0.5% means precise action for close circuit control

Applications

• Chemical processing
• Industrial safety devices
• Material handling

How do I know if I've started the delay timer?

This unit has an LED indicator that flashes when its delay timer starts counting down, making it easy to see if it's active during spot checks.
