A9A26478, Schneider Electric 12 → 24V ac/dc Shunt Trip Shunt trip for use with ARA, ic60 MCB, IDPN Vigi, ild Double Terminal, ilD MCB,

Schneider Electric | Acti 9 A9A Series | Auxiliary Contact

Are you looking to add an additional auxiliary contact to your control circuit, to provide further safety? Schneider Electric offers the latest in Auxiliary Contact components and technology.

Specifically, the Acti 9 series of Auxiliary Contactor brings reliability to your circuit by acting as a secondary switching device working in conjunction with other primary devices such as contactors, relays or circuit breakers.

The electrical auxiliaries are combined with iC60 circuit breakers, iID residual current circuit breakers, remote tripping switch disconnector iSW-NA , RCA remote controls and ARA automatic reclosers; they enable tripping or remote indication of their position (open/closed/tripped) upon a fault

Features and benefits:

• Low consumption on your control circuit.

• Compact, lightweight and easily attached to compatible contactors. Clip-on, DIN rail mountable (see datasheet for specifics).

• 18-month manufacturer warranty with Schneider Electric.

• Schneider Green Premium product - easily recyclable and disposed of. Built with sustainability in mind to have the least impact on the environment where possible. Toxic Heavy Metal-free. Mercury free.

Protection ratings & Safety features:

• IP20 conforming to EN/IEC 60947-5-1

Tripping auxiliaries:

iMN: undervoltage release
iMNs: delayed undervoltage release
iMNx: undervoltage release, independant from supply voltage
iMX: shunt release
iMX+OF: shunt release with open/close contact.

Indication auxiliaries:

iOF: open/close contact
iSD: fault indicating contact
iOF/SD+OF: open/close contact and switchable OF or SD contact.

Applications:

• Motor starters/Control systems.
• Switching contactors/relay coils.
• Control/Signalling equipment.

How do Auxiliary Contacts work?

An Auxiliary Contact is an electromechanical device that is mounted typically to contactors. They are physically connected to the contactor, with simultaneous activation and deactivation applying to both of the devices at the same time.

Aux Contacts can be installed onto contactors either by front mounting, or side mounting. This is usually clear in the shape and size of the product, but please check the compatibility of your devices. Aux Contacts are really useful devices to aid in keeping an eye on the contactor.

You can, for example, hook up a low voltage LED directly to the Aux Contactor without having to worry about the overall voltage of the contactor it is linked to (as long the Aux Contactor is electrically isolated from the contactor) you could use the LED to monitor the device i.e. indicate if the motor is off/on.

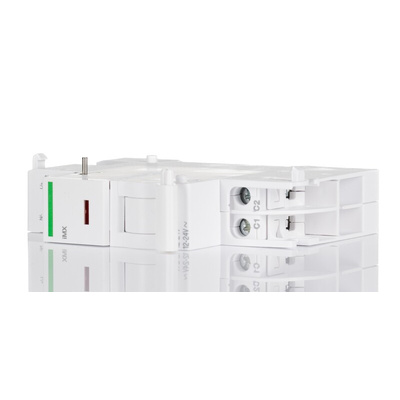

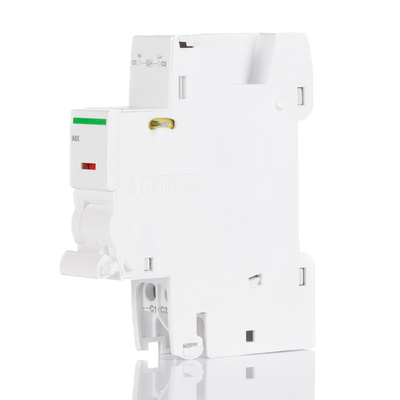

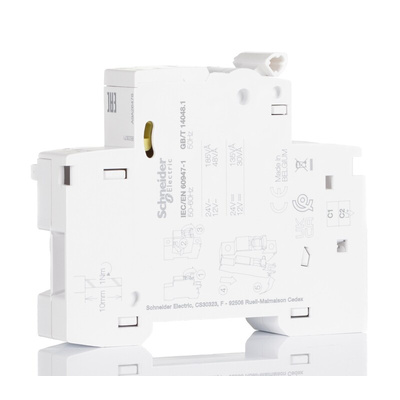

Schneider Electric Shunt Trip, 12 to 24V AC/DC Control Circuit Voltage Range, DIN Rail Mounting - Acti 9 Series - A9A26478

Keen to boost the safety features of your electrical setup? Choose this shunt trip from Schneider Electric. When powered on, it trips all connected circuits to shut down equipment in a flash if there's an emergency. Thanks to its control circuit voltage range of 12 to 24V AC/DC, you can count on it in low-voltage systems. Clamp terminals are on hand to hold your wires securely in place, preventing them from working loose if things get shaky.

Features & Benefits

• Wide operating temperature range between -25°C and +50°C for use in demanding environments
• Accommodates rigid and flexible cables for versatility

Applications

• Industrial automation
• Control systems
• Manufacturing equipment

Why should I add a shunt trip if I already have a circuit breaker?

Adding a shunt trip increases the safety of your setup. As you can manually shut down your system even if your circuit breaker doesn't cut power to your equipment, it helps prevent electrical hazards during fault conditions.

How do I mount this device?

It's a breeze to install this device as it simply clips onto a DIN rail.
