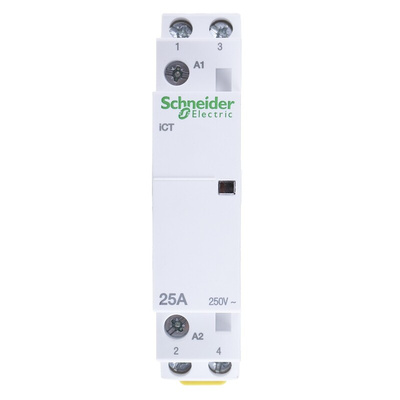

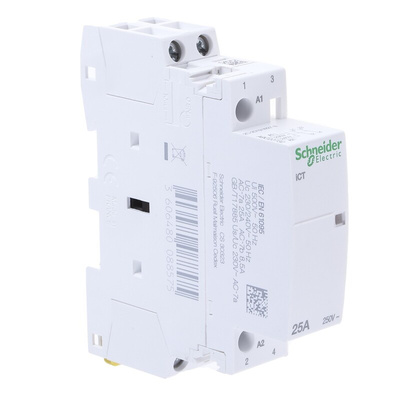

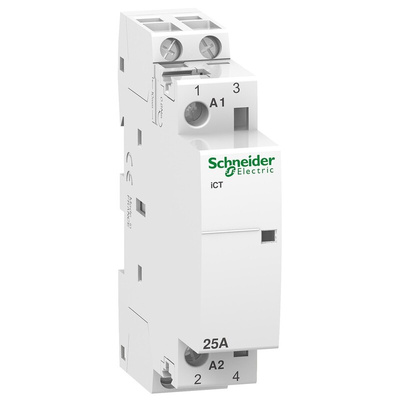

A9C20732, Schneider Electric iCT Series Contactor, 230 V ac Coil, 2-Pole, 25 A, 2NO, 250 V ac, Контактор

Schneider Electric Acti 9 iCT Contactors

ACTi 9 iCT Contactors from Schneider Electric provides power switching in single phase 3 phase loads. TeSys GC is a range of contactors that are safe, simple to use, and easy to install. The devices are compact in size and suitable for use in a wide variety of applications.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Impulse relay function
• Day-night function
• Class-2 insulation: continuous safety for operators and unqualified personnel

What is the difference between AC-7a and AC-7b when choosing a iCT contactor?

These utilization catagories determine what load the contactors are switching:
AC-7a are for slightly inductive loads for household appliances for example mixers and blenders
AC-7b are for motor-loads for house hold appliances such as fans and central vacuums

Do spacers have to be fitted between the iCT range of Contactors?

If several contactors are fitted onto an DIN Rail then spacers should be used after every second contactor. The reason for this is that with multiple contactors side by side there can be a very high build of heat causing the devices to reach above their operating temperature. The coils themselves are 100% rated so can be on for 24 hours a day and the heat needs to be dissipated, therefore a spacer is required

Schneider Electric Contactor, Screw Terminal Type, 500V AC Insulation Voltage - iCT Series - A9C20732

Flip the switch and turn on your system in a flash with this modular contactor from Schneider Electric. It's a champ at handling motors, lighting and HVAC systems. As it has two normally open contacts standing at the ready and can make up to 100 switches in a day, you can rely on it to comfortably control essential equipment. Thanks to 25A current and 250V AC voltage ratings, this powerhouse can easily handle even the most demanding electrical jobs. A mechanical lifespan of one million cycles means it's built to go the distance, providing dependable performance over the long haul.

Features & Benefits

• Wide operating temperature range between -5°C and +60°C for use in tough conditions
• Performs at up to 2000m, so handles high-altitude installation
• Space-saving dimensions of 81 (W) x 18 (H) x 68.5mm (D) to fit snugly in compact arrangements

Applications

• Motorised equipment
• HVAC systems
• Lighting controls

How do I mount this contactor to my setup?

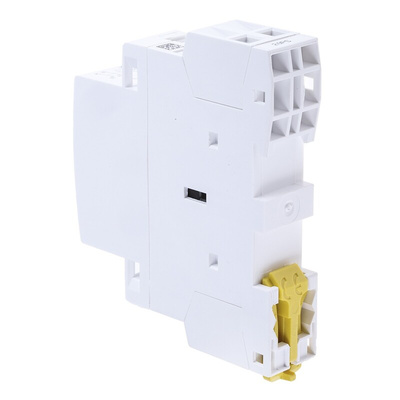

This device is a snap to install thanks to the clever clip-on mounting that fits onto a 35mm symmetrical DIN rail.
