A9E18331, Schneider Electric, iIL, DIN Rail Green LED Indicator, IP2X, 48V ac/dc

Acti9 iIL Indicator Lights

Acti9 iIL indicator lights are used to indicate that a voltage is present with single, double or flashing light

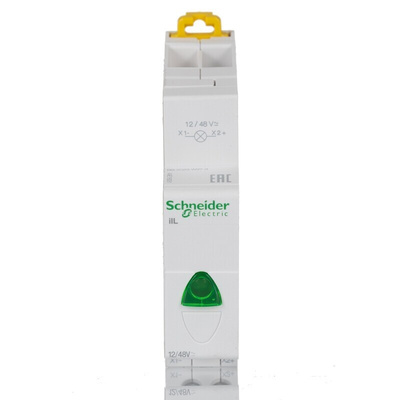

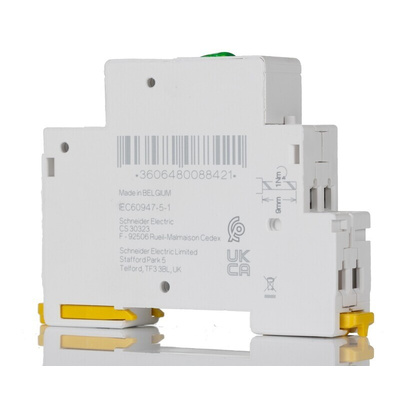

Schneider Electric Indicator, Single-Phase Type, 12 to 48V AC/DC Voltage Sensing Range - Acti9 iIL Series - A9E18331

Give the green light to show your machine's status with this indicator from Schneider Electric. It features a green LED lamp that automatically turns on when it senses voltage in the circuit, signifying the equipment is active. The unit detects voltage from 12 to 48V AC/DC for versatility in the power supply. As it has compact dimensions of 82 (H) x 18 (W) x 69.5mm (D), you'll find it a breeze to fit this indicator into a small enclosure in your workspace.

Features & Benefits

• Non-interchangeable function of LED makes it maintenance-free
• Minimal power consumption of 0.3W for energy efficiency
• Safe to use in extreme conditions, thanks to a broad operating temperature range between -35°C and +70°C

Applications

• Assembly plants
• Control and data centres
• Robotics systems

What's the service life of this indicator?

It has a service life of 100,000 hours for reliable long-term performance.

How do I mount this component?

For ease, you can mount this indicator in a fixed position by snapping it onto a DIN rail.

Acti9 iIL indicator lights

Datasheet A9E18331

Product Environmental Profile
