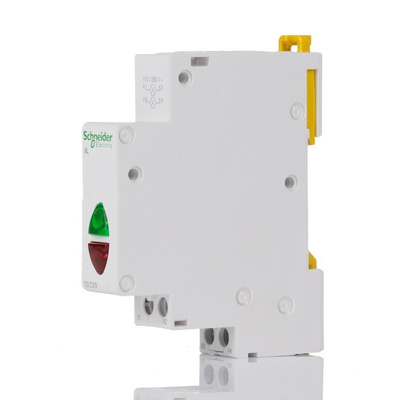

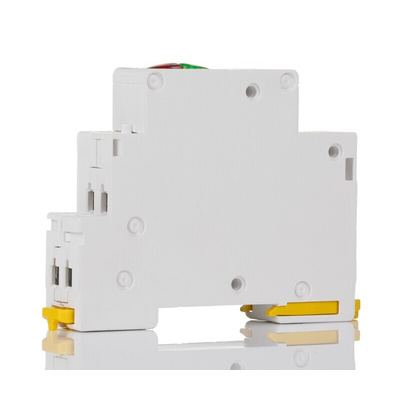

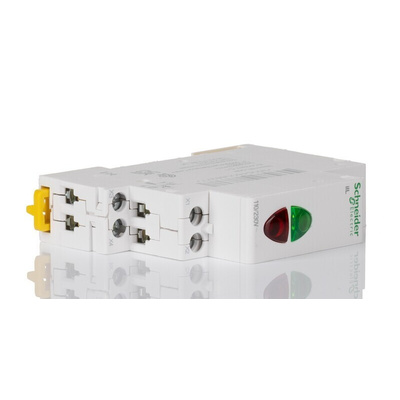

A9E18325, Schneider Electric, iIL, DIN Rail Red/Green LED Indicator, IP2X, 230V ac

Acti9 iIL Indicator Lights

Acti9 iIL indicator lights are used to indicate that a voltage is present with single, double or flashing light

Schneider Electric Indicator, Double-Phase Type, 100,000h Service Life - Acti9iIL Series - A9E18325

Bring your machine's operating status to light with this indicator from Schneider Electric. It works by sensing the presence or absence of voltage in the electric circuit. The front-facing LEDs then switch between green and red to show your equipment is on or off. Thanks to a mechanical service life of 100,000h, you can rest assured this device keeps up with long-term operations in your industrial setting. Lend it a steady hand by mounting it on a regulation symmetrical DIN rail.

Features & Benefits

• Rated supply voltage range of 110 to 230V AC and 110 to 130V DC, making for a flexible power feed
• Withstands harsh conditions as it operates in ambient temperatures ranging between -35°C and +70°C
• Double-phase design enables dual-signal function

Applications

• Oil and gas industries
• Medical equipment
• Telecommunications networks
• Packaging facilities

How big is this unit?

With its compact dimensions of 82 (H) x 18 (W) x 69.5mm (D), the indicator easily fits into a packed panel.

Is this an energy-efficient component?

Yes, this indicator has an energy consumption of 0.6W, meaning it uses minimal power.

Acti9 iIL indicator lights

Datasheet A9E18325

Product Environmental Profile

Instruction Sheet - Acti9 Phase Indicating Light
