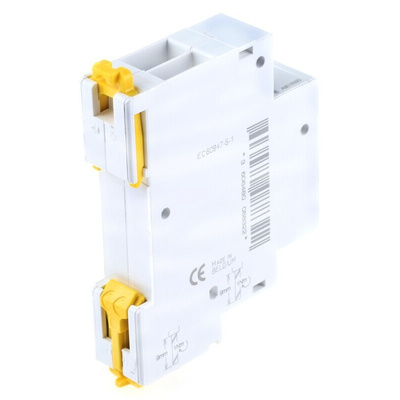

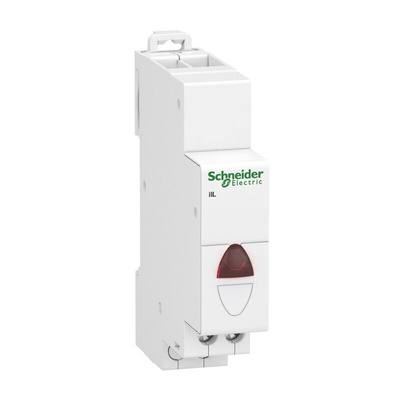

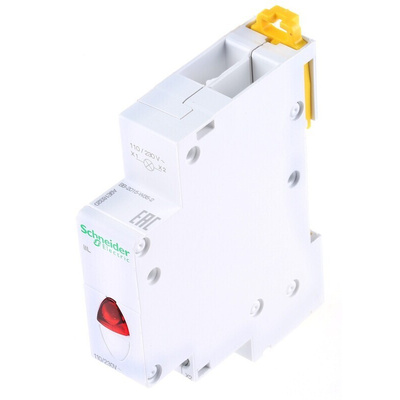

A9E18320, Schneider Electric, iIL, DIN Rail Red LED Indicator, IP2X, 230V ac

Acti9 iIL Indicator Lights

Acti9 iIL indicator lights are used to indicate that a voltage is present with single, double or flashing light

Schneider Electric Indicator, DIN Rail Mounting, 0.3W Power Consumption - Acti9 iIL Series - A9E18320

Shed light on the status of your equipment with this indicator from Schneider Electric. When it senses the presence or absence of voltage in the electric circuit, its internal red LED lamp turns on or off to show its operating state. With its minimal power consumption of 0.3W, this component is an energy-efficient option for your machinery. A broad operating temperature range between -35°C and +70°C means it holds firm in demanding industrial locations.

Features & Benefits

• Compact dimensions of 82 (H) x 18 (W) x 69.5mm (D) have no trouble fitting into cramped spaces
• Regulation DIN rail mounting for versatile installation
• IP20 rating indicates it's protected against solid objects over 12mm

Applications

• Power plants
• Aerospace engineering
• Lighting controls
• Server rooms

How durable is the indicator?

You can use this unit for long-term operations with minimal risk of breakdowns, thanks to its service life of 100,000 hours.

What's the supply voltage of this product?

With a rated supply voltage range of 110 to 230V AC and 110 to 130V DC, the indicator offers flexibility in the power supply to the circuit.
