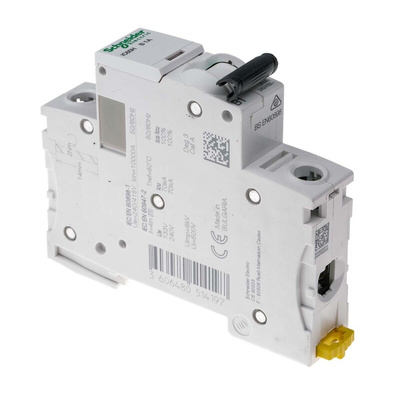

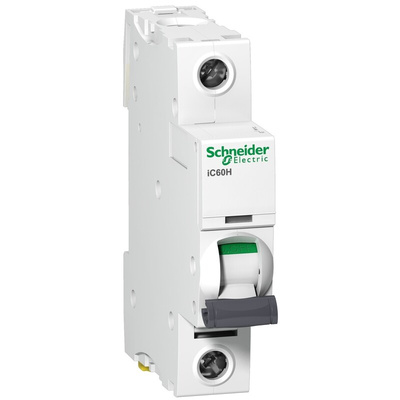

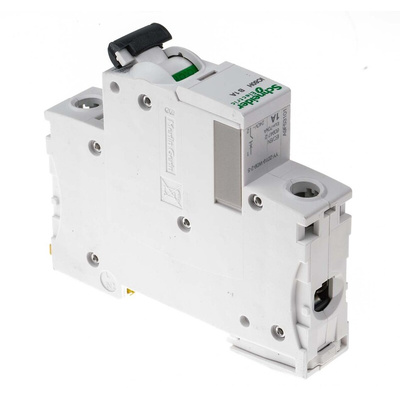

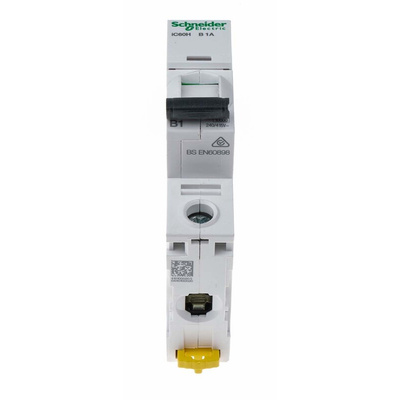

A9F53101, Schneider Electric Acti 9 iC60H MCB, 1P, 1A Curve B, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric Mini Circuit Breaker, Type B, 10kA Breaking Capacity - iC60H Series - A9F53101

Use this miniature circuit breaker (MCB) from Schneider Electric for industrial and commercial applications. By automatically cutting the current when a fault is detected, it safeguards electronic equipment from potential damage caused by short circuits and overloads. This single pole MCB functions on AC (alternating current) and DC (direct current), making it a versatile choice. Its 10kA breaking capacity makes it suitable for heavy-duty applications. For easy installation, it attaches to a DIN rail with a single clip.

Features & Benefits

• VisiTrip technology gives a visual indication that the circuit has tripped, for quick fault detection
• Compact dimensions of 85 (H) x 18 (W) x 78.5mm (D) make the unit suitable for use in small spaces
• Wide operating temperature range of -35°C to +70°C for use in demanding environments
• Uses a thermal-magnetic tripping mechanism for both instantaneous and time-delayed protection

Applications

• Industrial automation
• Domestic circuitry
• Offices

What's meant by this MCB's Type B tripping characteristic?

The unit's Type B tripping characteristic means the circuit trips instantly at a rate of three to five times the rated current. This makes it suitable for protecting generators, people and long cables.
