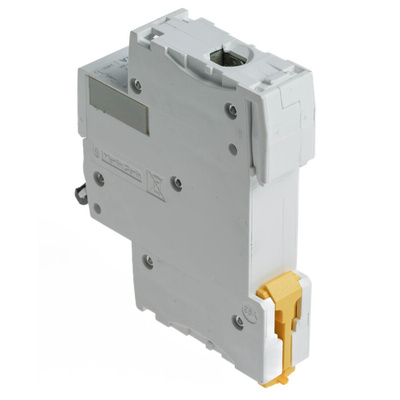

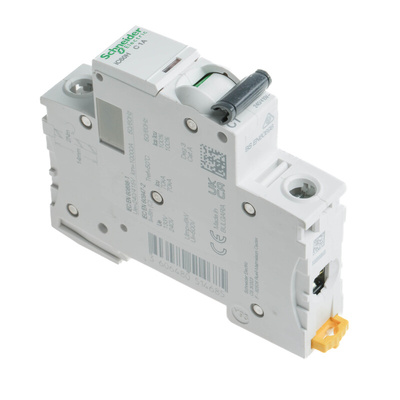

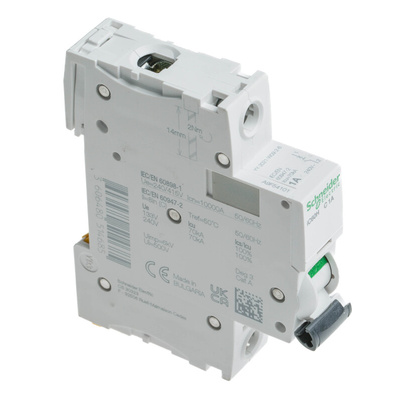

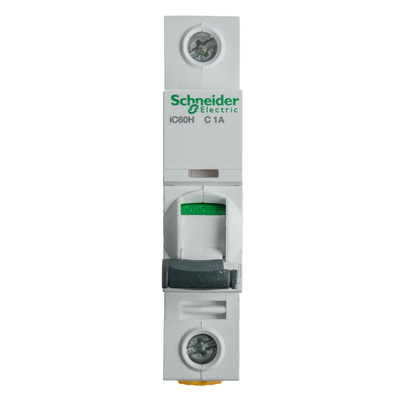

A9F54101, Schneider Electric Acti 9 iC60H MCB, 1P, 1A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:

• Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.


• Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.


• Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.


• 1P (number of protected poles).


• Nominal currents ranging from 1 to 63 Amps.


• Full compatibility with Acti 9 RCDs and MCCBs.


• Operating voltage up to 440 V ac, insulation voltage 500 V.


• Additional add-on earth leakage protection devices are available. This offers you better continuity of service.


• Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -

• IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.


• Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.


• Operating temperature (for operation) -35 to 70 ° C.


• Padlockable, providing extra protection.

Applications.

• DC current circuit protection / Motor circuit protection.


• Polluted environments/networks.


• Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?

• Curve B: Tripping: 3 to 5 times the rated current.


• Applications: protection of generators, persons, very long cables


• Curve C: Tripping: 5 to 10 times the rated current


• Applications: protection of circuits and general applications


• Curve D: Tripping: 10 to 14 times the rated current


• Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric MCB, 500V AC Rated Insulation Voltage, 50/60Hz Network Frequency - Acti9 Series - A9F54101

Fit this Schneider Electric MCB to your electrical setup and you don't have to worry about short circuits, overcurrent or overload halting work. It has type C tripping characteristics, meaning it cuts the attached circuit immediately when the current reaches between 5 to 10 times its 1A rating. The MCB's lightning-fast response time minimises the risk of fire, harm to personnel and damage to equipment. Thanks to rugged thermoplastic housing, this piece of kit holds its ground, even in harsh environments, as it can withstand impact, abrasion and workplace dust.

Features & Benefits

• Toggle switch control for easy reset after a trip
• Clip-on DIN rail mounting is simple and needs no tools, saving time and effort
• Compact dimensions of 85 (H) x 18 (W) x 78.5mm (D) for space-efficient installation in tight enclosures

Applications

• Domestic appliances
• Office buildings
• Electrical workshops

Can I secure this MCB during maintenance?

Yes, you can secure this unit in the OFF position with a padlock. This ensures full LOTO compliance during maintenance and prevents accidental reactivation while work is underway.
