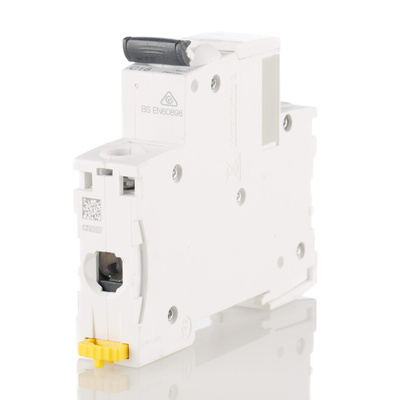

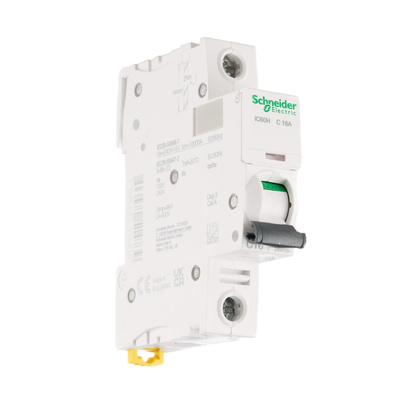

A9F54102, Schneider Electric Acti 9 iC60H MCB, 1P, 2A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:

• Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.


• Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.


• Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.


• 1P (number of protected poles).


• Nominal currents ranging from 1 to 63 Amps.


• Full compatibility with Acti 9 RCDs and MCCBs.


• Operating voltage up to 440 V ac, insulation voltage 500 V.


• Additional add-on earth leakage protection devices are available. This offers you better continuity of service.


• Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -

• IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.


• Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.


• Operating temperature (for operation) -35 to 70 ° C.


• Padlockable, providing extra protection.

Applications.

• DC current circuit protection / Motor circuit protection.


• Polluted environments/networks.


• Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?

• Curve B: Tripping: 3 to 5 times the rated current.


• Applications: protection of generators, persons, very long cables


• Curve C: Tripping: 5 to 10 times the rated current


• Applications: protection of circuits and general applications


• Curve D: Tripping: 10 to 14 times the rated current


• Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric MCB, Type-C Tripping, IP20 Rating - iC60H Series - A9F54102

Say so long to short-circuit and overload faults with this MCB from Schneider Electric. It uses a bimetallic strip to break your circuit and quickly stop the flow of electricity when it's exposed to excess current. This helps prevent device damage and keeps workers safe by reducing the risk of fire. As the unit's resettable via a simple toggle switch, it's up and running quickly after a trip and there's no need to replace any fuses. Thanks to its electrical and mechanical durability of 10,000 and 20,000 cycles respectively, you can trust this is a hardwearing option.

Features & Benefits

• Handy contact position and trip indicators keep you up to date on circuit status
• As a 1-pole device, it protects a single piece of connected equipment
• IP20 approval means it's protected against solid objects over 12mm, including your fingers

Applications

• Control circuits
• Lighting rigs
• Domestic appliances

What does type-C tripping mean?

As a type-C breaker, this MCB suits powerful electrical devices in commercial or industrial environments where surges are often higher. It trips your circuit when it receives between five and ten times its rated current of 2A, so it's handy for load-drawing applications like motor starting and fluorescent lighting.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
