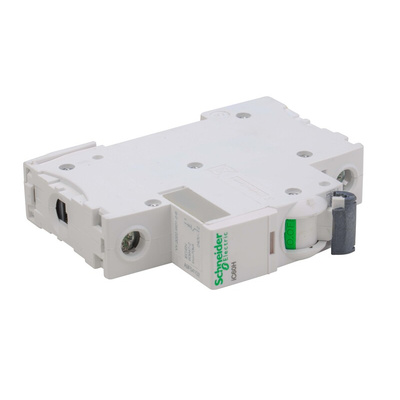

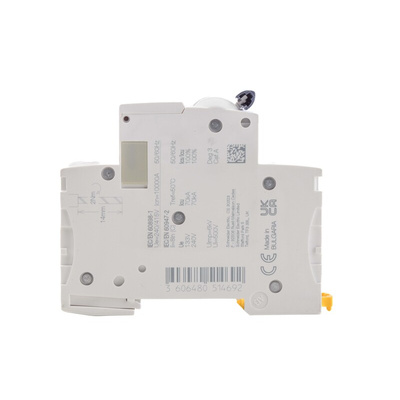

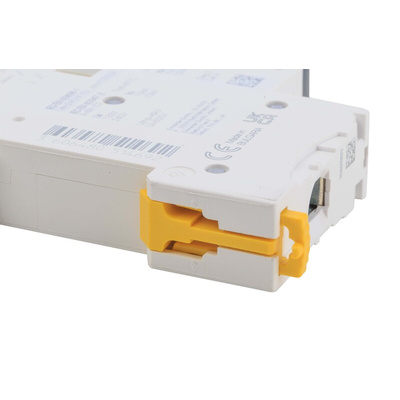

A9F54110, Schneider Electric Acti 9 iC60H MCB, 1P, 10A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:

• Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.


• Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.


• Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.


• 1P (number of protected poles).


• Nominal currents ranging from 1 to 63 Amps.


• Full compatibility with Acti 9 RCDs and MCCBs.


• Operating voltage up to 440 V ac, insulation voltage 500 V.


• Additional add-on earth leakage protection devices are available. This offers you better continuity of service.


• Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -

• IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.


• Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.


• Operating temperature (for operation) -35 to 70 ° C.


• Padlockable, providing extra protection.

Applications.

• DC current circuit protection / Motor circuit protection.


• Polluted environments/networks.


• Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?

• Curve B: Tripping: 3 to 5 times the rated current.


• Applications: protection of generators, persons, very long cables


• Curve C: Tripping: 5 to 10 times the rated current


• Applications: protection of circuits and general applications


• Curve D: Tripping: 10 to 14 times the rated current


• Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric MCB, 1 Pole, 10A Current Rating - iC60H Series - A9F54110

Power up your circuit protection with this MCB from Schneider Electric. It stops sudden surges and current overloads in their tracks thanks to a thermal-magnetic tripping mechanism. A fast-closing mechanism ensures a longer service life, with electrical endurance of up to 10k cycles and mechanical endurance of up to 20k cycles. Thanks to the unit's compact and ergonomic design, installation and wiring are a breeze – just clip it onto a DIN rail to get started.

Features & Benefits

• Type-C unit trips at a rate of 5 to 10 times its 10A rated current, giving a breaking capacity of 10kA
• VisiSafe green strip makes it easy to identify contact position during downstream maintenance
• VisiTrip works quickly to detect faults, cutting down on intervention time
• IP20 protection indicates resistance to solid objects bigger than 12mm

Applications

• Commercial buildings
• Fluorescent lights
• Factory machinery

What size is this MCB?

This unit is compact enough to fit neatly into tight spaces, with dimensions of 18 (W) x 85 (H) x 78.5mm (D).

What temperatures does it operate in?

The MCB performs reliably in harsh conditions with a temperature range between -35°C and +70°C. When it's not in service, store it in environments between -40°C and +85°C.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
