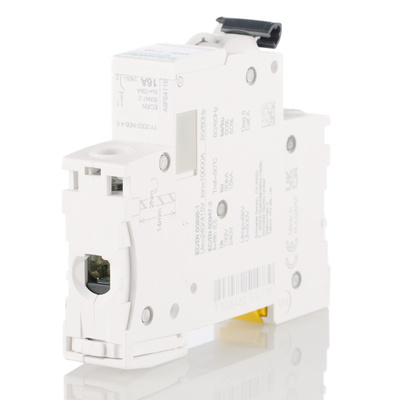

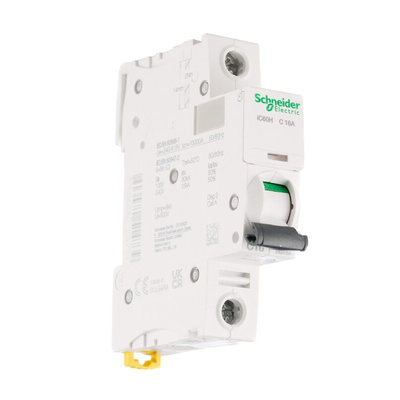

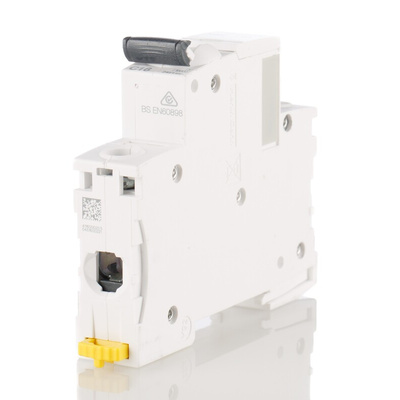

A9F54116, Schneider Electric Acti 9 iC60H MCB, 1P, 16A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:

• Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.


• Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.


• Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.


• 1P (number of protected poles).


• Nominal currents ranging from 1 to 63 Amps.


• Full compatibility with Acti 9 RCDs and MCCBs.


• Operating voltage up to 440 V ac, insulation voltage 500 V.


• Additional add-on earth leakage protection devices are available. This offers you better continuity of service.


• Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -

• IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.


• Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.


• Operating temperature (for operation) -35 to 70 ° C.


• Padlockable, providing extra protection.

Applications.

• DC current circuit protection / Motor circuit protection.


• Polluted environments/networks.


• Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?

• Curve B: Tripping: 3 to 5 times the rated current.


• Applications: protection of generators, persons, very long cables


• Curve C: Tripping: 5 to 10 times the rated current


• Applications: protection of circuits and general applications


• Curve D: Tripping: 10 to 14 times the rated current


• Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric MCB, 16A Current, Rocker Reset Actuator - iC60H Series - A9F54116

Make sure your circuit protection is firing on all cylinders with this MCB from Schneider Electric. To lighten your load, it has a thermal-magnetic tripping mechanism that puts a stop to sudden surges. VisiSafe technology lets you carry out maintenance work safely – look for the green strip to be sure of the unit's status. Class-2 insulation prevents overheating with a Ui-rated insulation voltage of 500V AC. Installation is fuss-free, as the breaker clips simply onto a DIN rail.

Features & Benefits

• VisiTrip feature wards off damage by rapidly detecting faults, so you can take action quickly
• Compact dimensions of 85 (L) x 18 (W) x 78.5mm (D) make it an easy fit in busy setups
• IP20-rated, so is safe from objects bigger than 12mm, like wires, screws and your fingers
• Type-C unit with 10kA breaking capacity is ideal for higher loads
• Rugged design with electrical endurance up to 10k and mechanical endurance up to 20k cycles

Applications

• Small motors
• Fluorescent lighting
• Factory automation

What temperatures can I use this MCB in?

You can count on this unit to operate safely in temperatures between -35°C and +70°C.

How much does this MCB weigh?

This MCB won’t weigh down your setup as it tips the scales at just 125g.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
