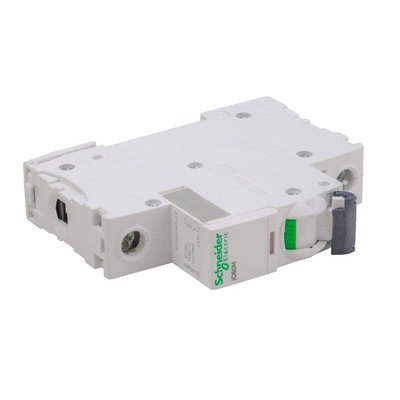

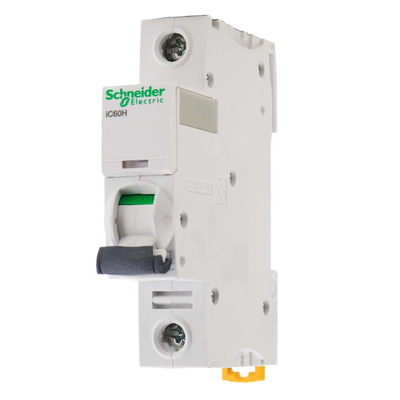

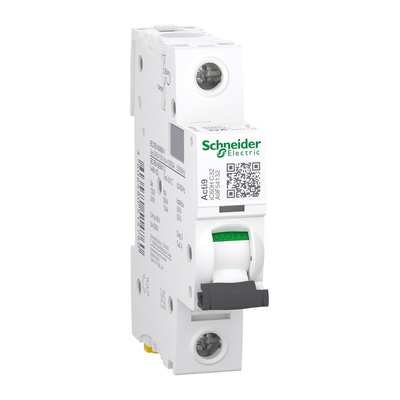

A9F54132, Schneider Electric Acti 9 iC60H MCB, 1P, 32A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:

• Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.


• Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.


• Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.


• 1P (number of protected poles).


• Nominal currents ranging from 1 to 63 Amps.


• Full compatibility with Acti 9 RCDs and MCCBs.


• Operating voltage up to 440 V ac, insulation voltage 500 V.


• Additional add-on earth leakage protection devices are available. This offers you better continuity of service.


• Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -

• IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.


• Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.


• Operating temperature (for operation) -35 to 70 ° C.


• Padlockable, providing extra protection.

Applications.

• DC current circuit protection / Motor circuit protection.


• Polluted environments/networks.


• Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?

• Curve B: Tripping: 3 to 5 times the rated current.


• Applications: protection of generators, persons, very long cables


• Curve C: Tripping: 5 to 10 times the rated current


• Applications: protection of circuits and general applications


• Curve D: Tripping: 10 to 14 times the rated current


• Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric MCB, Thermal-Magnetic Trip Technology, 50/60Hz Network Frequency - Acti 9 Series - A9F54132

Take the sting out of overloads and short circuits with this MCB from Schneider Electric. It's a handy miniature unit with adjustable current settings, so you can set the trip current to match the specific requirements of your system. Thanks to its type-C tripping characteristics, this product's a safe bet for powerful industrial equipment – it trips at 5 to 10 times its rated load of 32A. At 85 (H) x 18 (W) x 78.5mm (D), it's a compact choice that fits into tight spots.

Features & Benefits

• Thermal-magnetic trip technology ensures a speedy and accurate response to fault conditions
• Low weight of 125g for easy handling and installation
• Reliable in challenging environments thanks to an operating temperature range of -35°C to +70°C
• VisiSafe technology automatically detects faulty outgoing currents to reduce maintenance time

Applications

• Manufacturing machinery
• Residential electrical panels
• Lighting systems

How long will this circuit breaker last?

Mechanically, the MCB withstands about 20,000 cycles. You can count on its electrical components for around 10,000 cycles.

How do I install the unit?

You can clip this MCB straight onto your DIN rail, so installation's a walk in the park.
