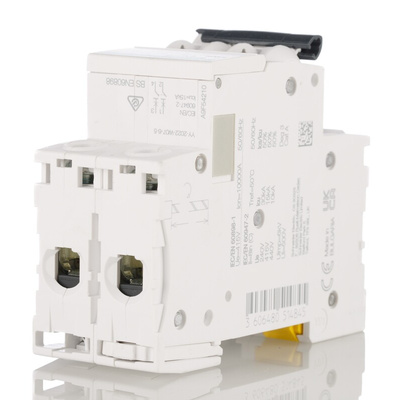

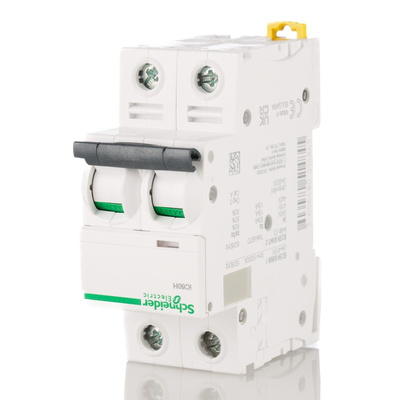

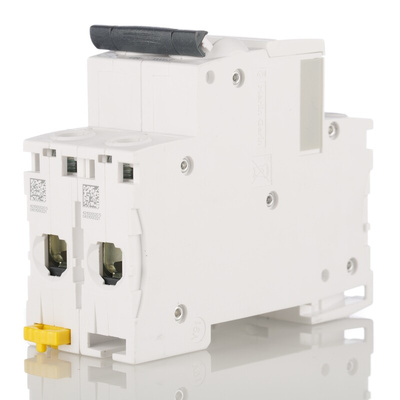

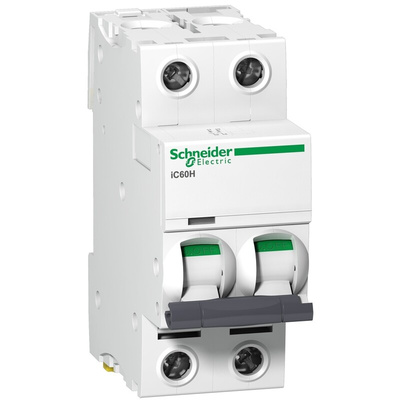

A9F54232, Schneider Electric Acti 9 iC60H MCB, 2P, 32A Curve C, 440V AC, 100 → 133V DC, 10 kA Breaking Capacity

Schneider Electric MCB, 50/60Hz Network Frequency, 6kV Rated Impulse Withstand Voltage - Acti 9 Series - A9F54232

Don't let electrical hazards get the better of your electrical equipment – protect it with this MCB from Schneider Electric. By using thermal-magnetic tripping technology, it monitors your circuits and cuts power in the event of a short circuit or current overload. This keeps your gear safe from damage and prevents fire outbreaks. Thanks to type-C tripping characteristics, this piece of kit cuts power at 5 to 10 times its 32A current rating. This means it safely withstands high inrushes, so it's an ideal choice for protecting powerful machines like motors and transformers.

Features & Benefits

• DIN rail clip-on mounting is simple and doesn't need complex tools, saving time and hassle
• Light weight of 250g for easy handling during installation
• Mechanical durability of 20,000 operating cycles for long-term performance
• Breaking capacity of 10kA means it withstands high power surges without suffering damage

Applications

• Switchgear systems
• High-pressure and low-pressure compressors
• Industrial chillers

How big is this device?

It's a compact unit, measuring just 85 (H) x 36 (W) x 78.5mm (D), so it takes up minimal space on your DIN rail or inside your enclosure.
