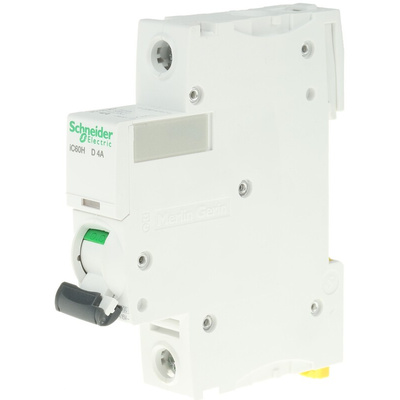

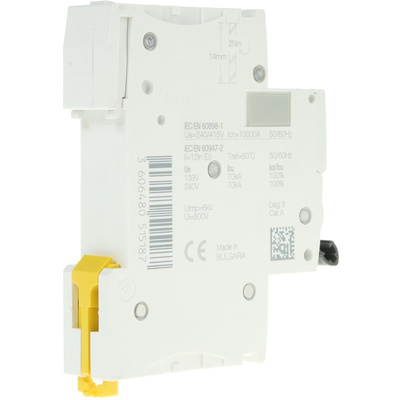

A9F55104, Schneider Electric Acti 9 iC60H MCB, 1P, 4A Curve D, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

7913467
Номер производителя: A9F55104Производитель: Schneider Electric
Цена за шт.
11142.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:

  • Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.

  • Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.

  • Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.

  • 1P (number of protected poles).

  • Nominal currents ranging from 1 to 63 Amps.

  • Full compatibility with Acti 9 RCDs and MCCBs.

  • Operating voltage up to 440 V ac, insulation voltage 500 V.

  • Additional add-on earth leakage protection devices are available. This offers you better continuity of service.

  • Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -

  • IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.

  • Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.

  • Operating temperature (for operation) -35 to 70 ° C.

  • Padlockable, providing extra protection.

Applications.

  • DC current circuit protection / Motor circuit protection.

  • Polluted environments/networks.

  • Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?

  • Curve B: Tripping: 3 to 5 times the rated current.

  • Applications: protection of generators, persons, very long cables

  • Curve C: Tripping: 5 to 10 times the rated current

  • Applications: protection of circuits and general applications

  • Curve D: Tripping: 10 to 14 times the rated current

  • Applications: protection of high surge circuits, welders, transformers and motors

The Acti9 come in either Curve B , C or D. Please refer to specifications for specific type.

A9F55104 Schneider Electric MCB

This model has tripping curve type D that trips instantly at a rate of 10 to 14 times the rated current 1 pole breaker and a breaking capacity of 10 kA.

Техническая спецификация
pdfMulti9 to Acti9 Reference Guide Data Sheet
pdfDatasheet
pdfGreen Premium - Product Environmental Profile
pdfProduct Environmental Profile
Верификация Better World:
Green Premium
Вид монтажа:
Крепление на DIN рейку
Глубина:
78.5мм
Диапазон:
Acti 9
Длина:
85мм
Количество полюсов:
1P
Номинал тока:
4A
Номинальное напряжение переменного тока:
100 → 133 V, 12 → 60 V, 220 → 240V
Номинальное напряжение постоянного тока:
72 V, 12 → 48V
Отключающая способность при максимально допустимом напряжении:
10 кА
Размыкающий механизм:
Thermal-Magnetic
Серия:
iC60H
Тип автоматического выключателя:
MCB
Тип контактов терминала:
Винт
Тип сбрасываемого привода:
Клавишный выключатель
Товар Better World:
Да
Характеристики срабатывания:
Type D
Ширина:
18мм
