MS 917, Catu MS-917, LED Voltage tester, 690V ac/dc, Continuity Check, Battery Powered, CAT IV With RS Calibration

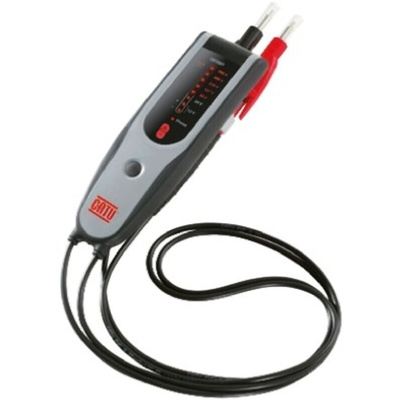

MS917 voltage detector

Fully dedicated to safety, this voltage tester combines all the functions of a multicontroller.
It can check AC and DC levels from 6 to 600 V and continuity in disconnected electrical circuits.
IP2X touch points with retractable sheath in compliance with IEC 61010-2-031, for improved contact with the conductive wells.
The MS917 is the essential daily usage safety assistant for professional electricians.
Case available separately:
- reinforced waterproof canvas
- plastic belt loop
- Eclair closing mechanism with two slides (quick opening)

Standards

IEC 61243 and EN 50110-1, IEC 61010-2-031 Cat. III

Catu Voltage Multi-Tester

The Catu voltage multi-tester measures voltage ranging between 12V and 690VAC/DC. It comes with a blister pack, 2xAAA batteries and a user manual.

Applications

Electrical systems
Industrial sites
Commercial sites
• Check the presence of voltage.
• Checks voltage levels from 12 to 900 V AC, 1 000 V DC. (According to models)
• Sound and light continuity for a non-live circuit. (threshold of 200 Ohm).
• Search for the polarities of a DC circuit.
• Unipolar phase identification.
• For indoor / outdoor use.

Features and Benefits

Checks polarity
Searches for phase and neutral
Checks the continuity (200ohm) with a pushbutton
Frequency ranges between50Hz and 60Hz ±10%
LED scale display
Continuity check of a de-energized circuit
Unipolar identification of the phase
Searches for the polarities of a DC circuit
CAT IV 600V safety rating
Operating temperature ranges between -10°C and 55°C
• Fitted with IP2X test lead points with retractable trigger tips (MS-917-PG) or retractable sleeves (MS-917 and MS-917-BS). Test lead points Ø 2 mm L: 19 mm (MS-917-L)
• Total safety with hazardous voltage indicator light (> 50 V).
• Protection level: IP 65 and IK 06.
• Self test button to discern the verification of the good functioning and the continuity function.
• Completely modular and adjustable to eclipse sockets.
• LED display.

Composition

• MS-917-PG and MS-917-ET: supplied with soft carrying case and belt loop Réf. M-87285

Optional Accessories

• Carrying bag with belt loop: M-87285.
• Holder: M-952325.

Certifications

CE
IP65 rated
IK06
IEC 61243
EN 50110-1
IEC 61010-2-031
IEC-61010-1

Voltage Level Indicators

A range of voltage testers each available in versions suitable for electronic or electrical applications.
