Aoip Instrumentation CP-6632 Current & Voltage Calibrator, Max Voltage 50V, Max Current 25mA, RS Calibration, Калибратор

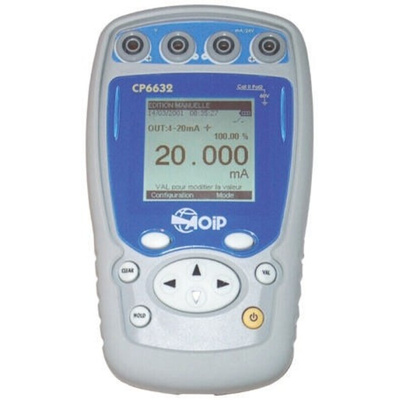

CP6632 voltage / current calibrator

Voltage / current calibrator for process loops.
Current simulations from 0 → 25 mA with 24 V loop power supply and voltage from 0 → 15 V.
Current measurement from 0 → 25 mA with 24 V loop power supply and voltage from 0 → 50 V.
Continuity test.
Compatible with HART transmitters.
Calibration of transmitters, on-site measurements, integrated valve test.
Scaling in units and in % for easy reading of data with double display for 4 → 20 mA and 0 → 10 V process signals.
Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function.
Graphic display on screen with date and time, backlit with adjustable contrast. Selectable display resolution of up to 0.001 mA or 0.001 V.
Display of measurement statistics: Min, Max and Average.
Impact proof sheathing.
USB socket for downloading.
Supplied with measurement cables.

Note

Powered by 4 AA batteries or by using battery charger kit (this has EU not UK plug) available separately: AN6011 5083757

Aoip Instrumentation Current and Voltage Calibrator

The Aoip Instrumentation current and voltage calibrator is an accurate handheld instrument for process signals (150 ppm reading accuracy). This device measures or generates process current and voltage. It has a current measurement from 0mA to 25mA with 24V loop power supply and voltage from 0V to 50V. The calibrator is robust and easy-to-use. This tool has been designed to make maintenance operations easier on sensors and transmitters using process signals such as 4-20mA or 0-10V. The instrument is adapted to the various process installations due to scaling function and specific ranges. It is responsible for simulating ramps, steps, and fixed values to control process transmitters, panel meters and recorders.

Features and Benefits

Voltage/ current calibrator for process loops.
Current simulations from 0mA to 25mA with 24V loop power supply and voltage from 0V to 15V
High accuracy 0.015% reading with an adjustable resolution of 1mV and 1μA
Values displayed in A, mV and, %
Low temperature coefficient: 15ppm/°C in voltage and 20ppm/°C in current
Active or passive loop power supply
Measurements with HOLD function
Simulation of ramps, pre-programmed steps and synthesiser values
Display of minimum, maximum and average value
Delivered with 4 alkaline AA batteries in standard
Backlight enabled
Continuity test
Compatible with HART transmitters
Impact proof sheathing
USB socket for downloading
Supplied with measurement cables

Applications

Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation

Certifications

IP45 rated
EN 61010-1
EN 61000-4-2
EN 61000-4-3
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
EN 61000-3-2
EN 61000-3-3
EN 55022, class B

CP6632 Test Tool for Process Signals Data Sheet
