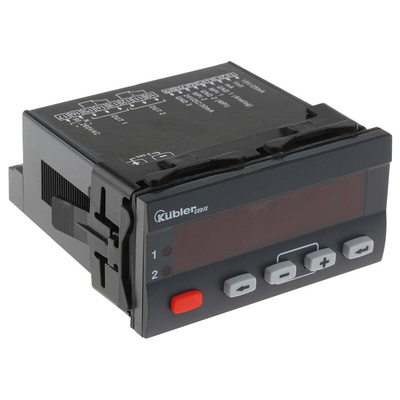

6.565.010.000, Kübler CODIX 565 LED Digital Panel Multi-Function Meter for Current, Voltage, 45mm x 92mm, Многофункциональный измеритель

Kubler Process Controller

The Kubler process controller is enabled with a totaliser function that displays voltage and current analogue input signals in high resolution. Also, it can monitor and control 2 limit values. It has an easy-to-read, 6-digit 14-segment, LED display
easy-to-understand running help texts
and a practical quick-start guide that efficiently replaces time-consuming, full instruction manuals.

Features and Benefits

Simple programming via 4 keys on the front
Sampling rate of 10 readings per second
Power supply voltage rating is 100VAC to 240VAC
1 front key, as well as 2 additional inputs can be programmed for specific applications
Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs
Minimum/maximum memory function, individually resettable
2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current
Display range is -199999 to 999999, with leading zero blanking
Inputs and outputs are galvanically isolated
Digital filter (first-order) for smoothing display fluctuation with unstable input signals
Tare function
Cut-out height of 45mm and width of 92mm and depth of 90.5mm
Operating temperature ranges between -20°C and 65°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
cRUus certified

Codix 565 Process Controllers

6.565.010.000 Datasheet

Operating Instructions
