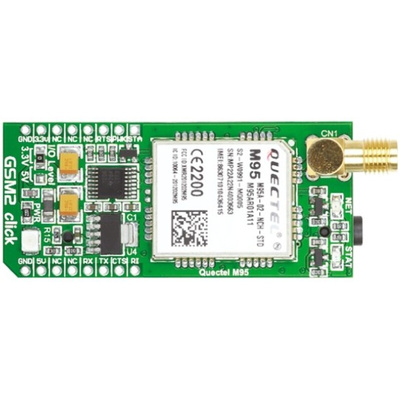

MikroElektronika GSM2 Click Quectel M95 GSM mikroBus Click Board 900 → 1900MHz MIKROE-1375

GSM2 click mikroBUS™

The Click accessory modules plug into the MikroBUS sockets in MikroElektronika microcontroller development boards. GSM Click is a compact and easy solution for adding the GSM/GPRS mobile phone standard to your design.

Quectel M95 GSM module
Supports GSM/GPRS 850/900/1800/1900MHz Quad-band frequency
85.6kbps GPRS data transfer
Supports TCP/IP, UDP, FTP and PPP protocols
MikroBUS interface
Audio connector
SIM card socket
SMA antenna connector
Power supply: 3.3V or 5V

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
