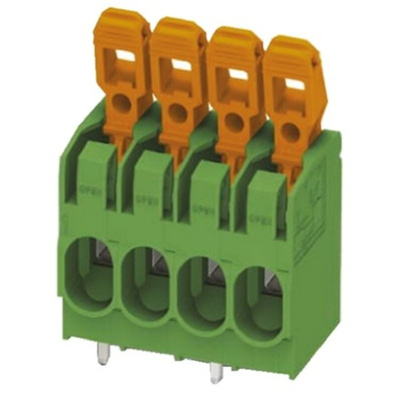

1792122, Phoenix Contact PLH 5/4-7.5-ZF Series PCB Terminal Block, 4-Contact, 7.5mm Pitch, Through Hole Mount, 1-Row, Spring

Phoenix Contact COMBICON PLH 7.5 mm PCB Terminal Blocks

The 7.5 mm pitch PLH series of Horizontal, PCB mounted, Terminal Blocks from Phoenix Contact feature a push-lock spring type connection with low actuation force lever operation.
The 7.5 mm PLH PCB Terminal Block can accept solid or stranded wire from 0.2 mm² to 6 mm² (24-10 AWG).
The rated current / cross section for the 7.5 mm PLH PCB Terminal Block is 41 A/6 mm².
The material Inflammability class is UL 94 V0 for the 7.5 mm PLH PCB Terminal Block.
The PCB requires a 2 mm diameter hole for the Zig-Zag pinning pattern of the 7.5 mm PLH Terminal Block.

Phoenix Contact COMBICON 7.5mm Pitch PCB Terminal Blocks

PCB Terminal Block - PLH 5/ 4-7,5-ZF - 1792122 - Datasheet
