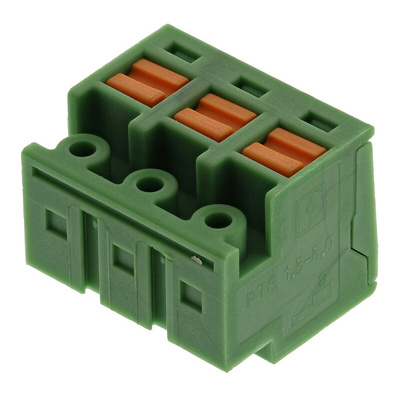

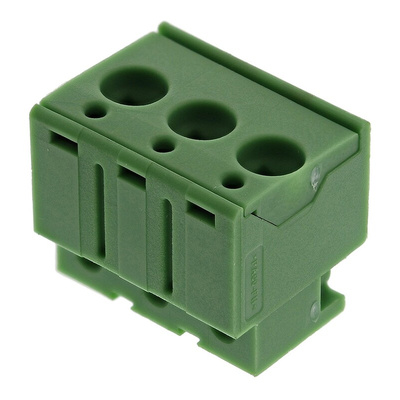

1805520, Phoenix Contact 5mm Pitch 3 Way Horizontal Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination, Клеммная колодка

Phoenix Contact COMBICON PTS 5.0mm Terminal Block Plug Connectors

These Cable mounted Plugs of the 5 mm pitch Two-Part Terminal Block PTS 1,5/ x-PH-5,0 Series from Phoenix Contact have a Horizontal orientation and feature a direct push-in spring connection.
The 5 mm PTS 1,5/ x-PH-5,0 Plug Terminal Block can accept solid or stranded wire from 0.2 mm² to 2.5 mm² (26-14 AWG).
The rated current / cross section for the 5 mm PTS 1,5/ x-PH-5,0 Plug Terminal Block is 10 A/2.5 mm².
The material Inflammability class is UL 94 V0 for the 5 mm PTS 1,5/ x-PH-5,0 Plug Terminal Block.
For compatible Pin Strips see stock number 548-7171 typical.

Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks
