1792863, Phoenix Contact PTS 1.5/ 2-5.0-H Series PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Spring

Phoenix Contact COMBICON PTS 5.0mm PTS PCB Terminal Blocks

The 5 mm pitch PTS series of Horizontal, PCB mounted, Terminal Blocks from Phoenix Contact feature a direct plug-in spring-cage type connection and finger-operated release button.
The 5 mm PTS PCB Terminal Block can accept solid or stranded wire from 0.14 mm² to 2.5 mm² (26-14 AWG).
The rated current / cross section for the 5 mm PTS PCB Terminal Block is 12 A/2.5 mm².
The material Inflammability class is UL 94 V0 for the 5 mm PTS PCB Terminal Block.
The PCB requires a 1.2 mm diameter hole for the 5 mm PTS Terminal Block pins.

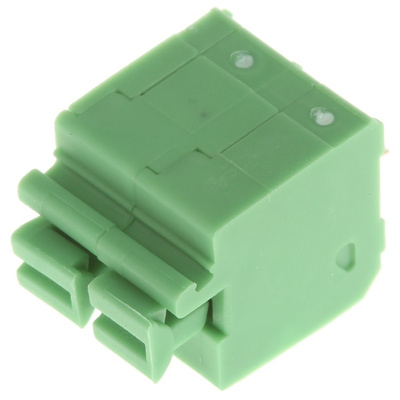

Phoenix Contact Spring PCB Terminal Block,12 A, 2-way - PTS 1,5/ 2-5,0-H - 1792863

This 2-way PCB (printed circuit board) terminal block from Phoenix Contact lets you simply and reliably link up wires and components across PCBs. It's a compact, modular device that can be mounted and stacked directly on your PCB board.
For tool-free installation, the block has push-in, spring-cage fittings, meaning your electrical connections are easy to adjust or undo. Through-hole mounting lets you mount it on your PCB board easily, and you can disassemble your circuitry quickly thanks to the finger-operated release button.
The green polyamide material used for the product's housing is highly insulating and certified to UL (Underwriter Laboratories) 94 V-0. This indicates that it will burn for no more than 10 seconds when exposed to a naked flame. You can use this block for everyday electronics like laptops and radios, as well as PCB circuitry in industrial equipment.

• 2 contacts
• Single row
• Current rating of 12 A
• Voltage rating of 630 V
• Length of 10 mm
• Width of 13.6 mm
• Depth of 10.5 mm
• Pitch of 5 mm
• Horizontal body orientation
• Weight of 1.7 g
