Telemecanique Inductive Proximity Sensors XS.
Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).
OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.
Styles Available.
- Flush and Non-Flush (shielded and non-shielded).
- Flat form.
- Short and long body.
- PNP and NPN versions (compatible with PLCs and controllers).
- 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).
How do they work and where can I use them?
- Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.
- Material working, machine tools. Packaging. Food and beverage. Robotics.

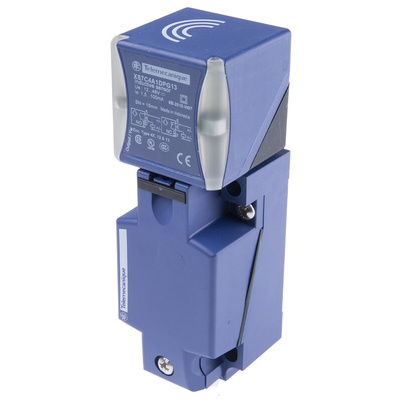

XS7C4A1DPG13 General Purpose Inductive Proximity Sensor (XS).
- XS7 Inductive Proximity Sensor.
- General purpose.
- Flat form (block) 40 x 40 x 117.
- Size 117 mm.
- Fixed body, Flush mountable.
- Plastic (PBT), PBT front.
- Discrete signal, 2-wire.
- 15 mm sensing distance (nominal).
- Output 1 NO or 1 NC programmable (DC).
- Screw clamp 4 x 1.5 mm.
- [Us] rated supply voltage 24 to 48 V dc (with reverse polarity).
- 5 Position turret head detection face.
- 1 LED, yellow output.
- Length 40 mm, Height 40 mm, Width 117 mm.
- Weight 0.244 Kg.
- 1 Tapped cable entry for Pg 13.5 cable gland.
- IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050.
- Vibration resistance to IEC 60068-2-6.
- Shock resistance to EN 60068-2-27.
- CE marked.
Certificates.
- UL, CSA, CCC.
Packaging Machines Application Software
Packaging Automation
Datasheet XS7C4A1DPG13
Green Premium Ecolabel
Product Environmental Profile
XS range Catalogue
CAD Drawing_XS7C4A1DPG13
Instruction_Sheet-1
