XS7C4A1MPG13, Telemecanique Sensors XS7 Series Inductive Block-Style Inductive Proximity Sensor, 15 mm Detection, Discrete Output, 20, Индуктивный датчик приближения

7931807
Номер производителя: XS7C4A1MPG13Производитель: Telemecanique Sensors
Цена за шт.
30482.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Telemecanique Inductive Proximity Sensors XS.

Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

  • Flush and Non-Flush (shielded and non-shielded).

  • Flat form.

  • Short and long body.

  • PNP and NPN versions (compatible with PLCs and controllers).

  • 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

  • Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.

  • Material working, machine tools. Packaging. Food and beverage. Robotics.

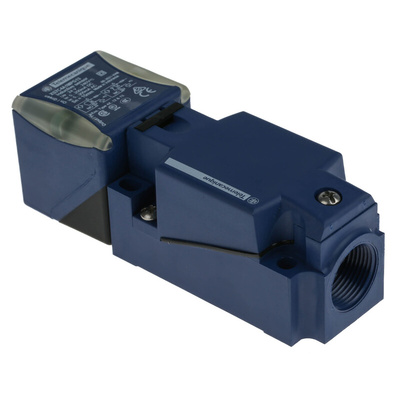

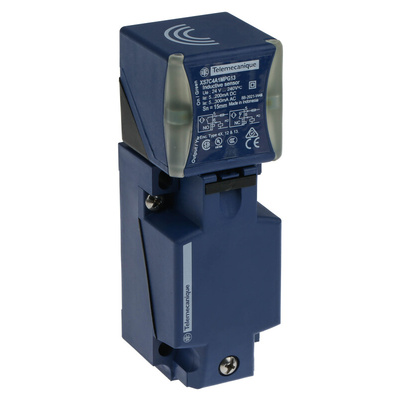

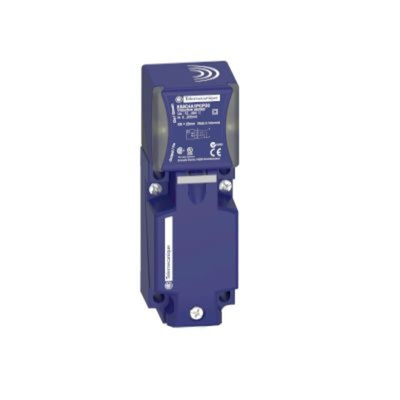

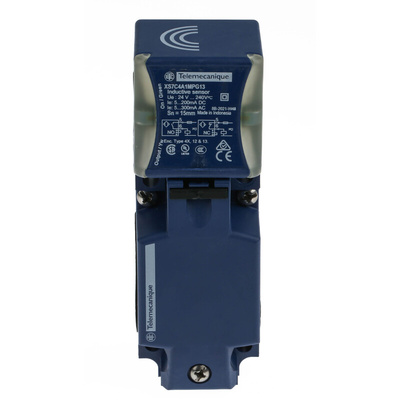

Telemecanique Sensors Proximity Sensor, Flush Mountable, PBT Enclosure - XS7C4A1MPG13

Need precise position detection in your industrial equipment? Count on this proximity sensor from Telemecanique Sensors. It uses magnetic-inductive technology to pick out a metal object's exact position, so it's useful for functions like material handling and gate control. Thanks to its durable PBT enclosure, the product holds its own against wear and impact in harsh environments. A 15mm detection range makes it a good fit for short-span operations. This versatile piece of kit works in both AC and DC networks to suit your system's needs.

Features & Benefits

• Flush-mountable design so it doesn't get in the way of moving equipment
• IP69K rating means it's fully dustproof and resists high-temperature, high-pressure water jets, so tolerates washdowns
• Integrated LED status indicators for at-a-glance monitoring and diagnosis
• Light weight of 244g for easy handling during installation

Applications

• Pharmaceutical industry
• Lifts and escalators
• Amusement parks

How do I link cables to this sensor?

Handy screw clamp terminals make it a breeze to attach cables to this sensor. All you need is a simple screwdriver to get the job done.

Техническая спецификация
pdfXS7C4A1MPG13 Datasheet
pdfProduct Environmental Profile
pdfXS range Catalogue
pdfCAD Drawing_XS7C4A1MPG13
pdfInstruction_Sheet-1
Вид корпуса:
Block
Встречающиеся стандарты:
CSA, UL
Глубина:
117мм
Диапазон обнаружения:
15 мм
Длина:
40мм
Коммутируемый ток:
200 мА, 300 мА
Максимальная частота переключений:
50Гц
Максимальное напряжение переменного тока:
240В
Максимальное напряжение постоянного тока:
240В
Материал корпуса:
Пластик
Напряжение питания:
20 → 264 В перем./пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Серия:
XS7
Степень защиты IP:
IP65, IP67, IP69K
Технология датчика:
Индуктивный
Тип выхода:
Дискретный
Тип клеммы:
PG 13.5 Gland
Тип монтажа:
Заподлицо
Частота переключений:
50 Гц
Ширина:
40мм
